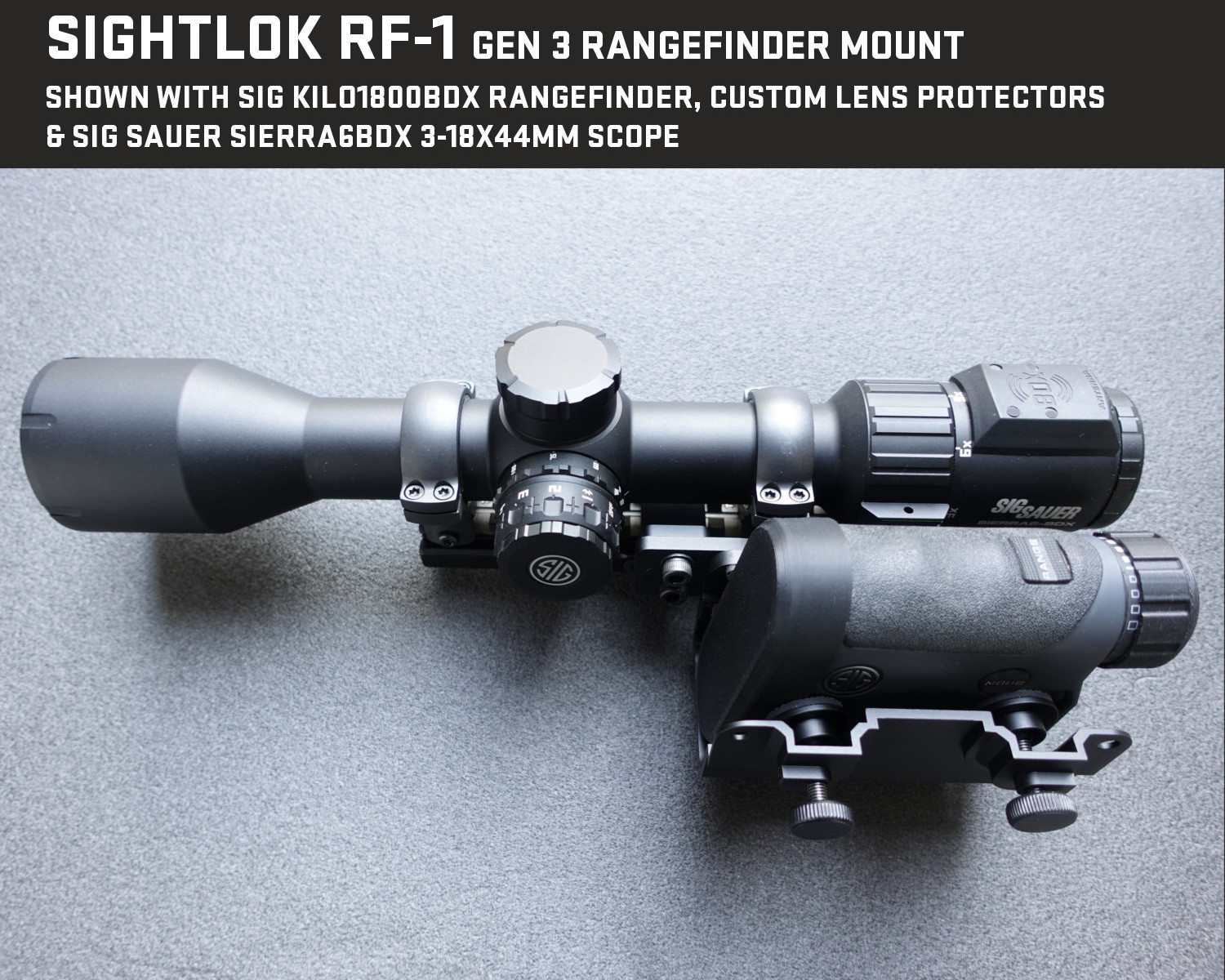

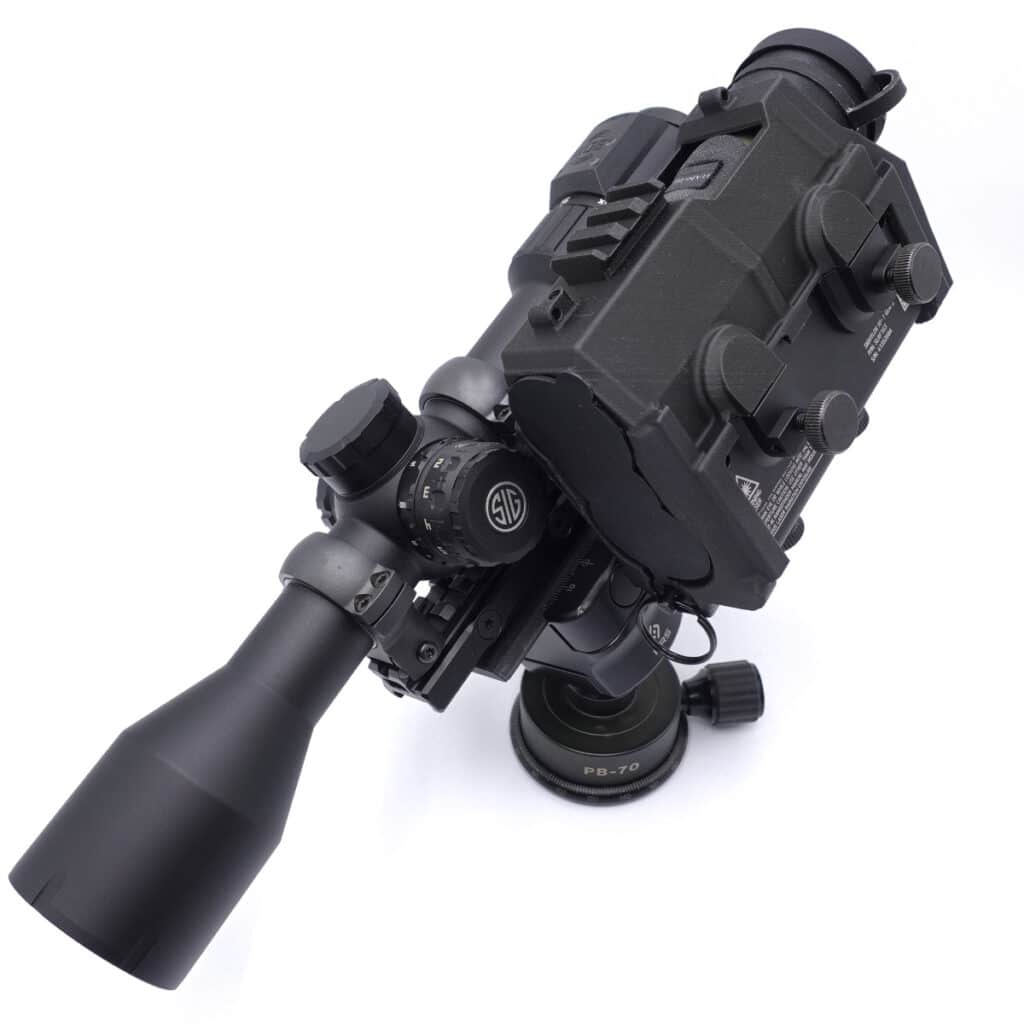

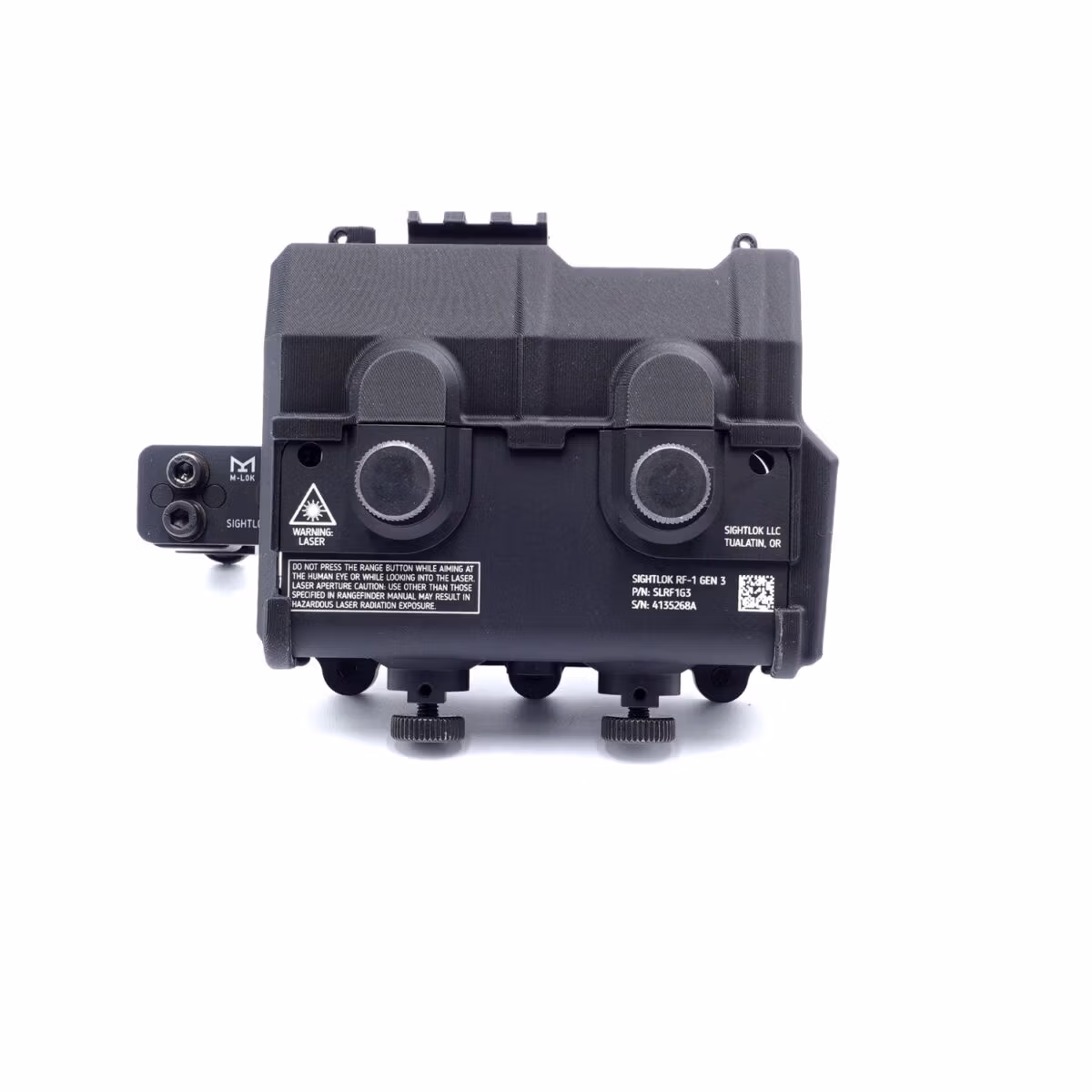

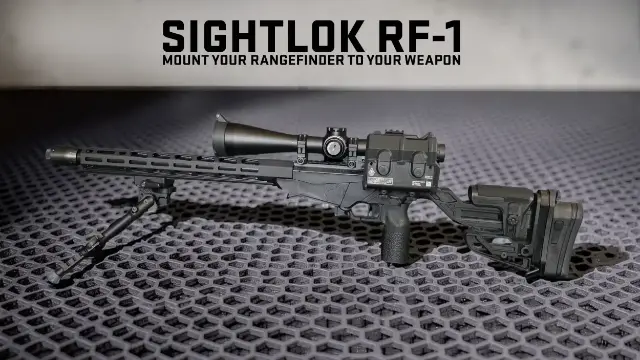

Sightlok RF-1 Universal Rangefinder Mount for Rifles and Crossbows. Fits Picatinny/Weaver Rails. Windage/Azimuth and Elevation Adjustments. Co-Align/Co-Witness Laser Range Finder with Scope. Range and Shoot Faster and More Accurately Using Scope Reticle. Aerospace-Grade Aluminum. Made in U.S.A.
Sightlok RF-1 Rangefinder Mount – range faster using scope reticle, mounts to picatinny and weaver rails, mil-spec anodized 6061-T6 aluminum
Original price was: $229.95.$189.95Current price is: $189.95.

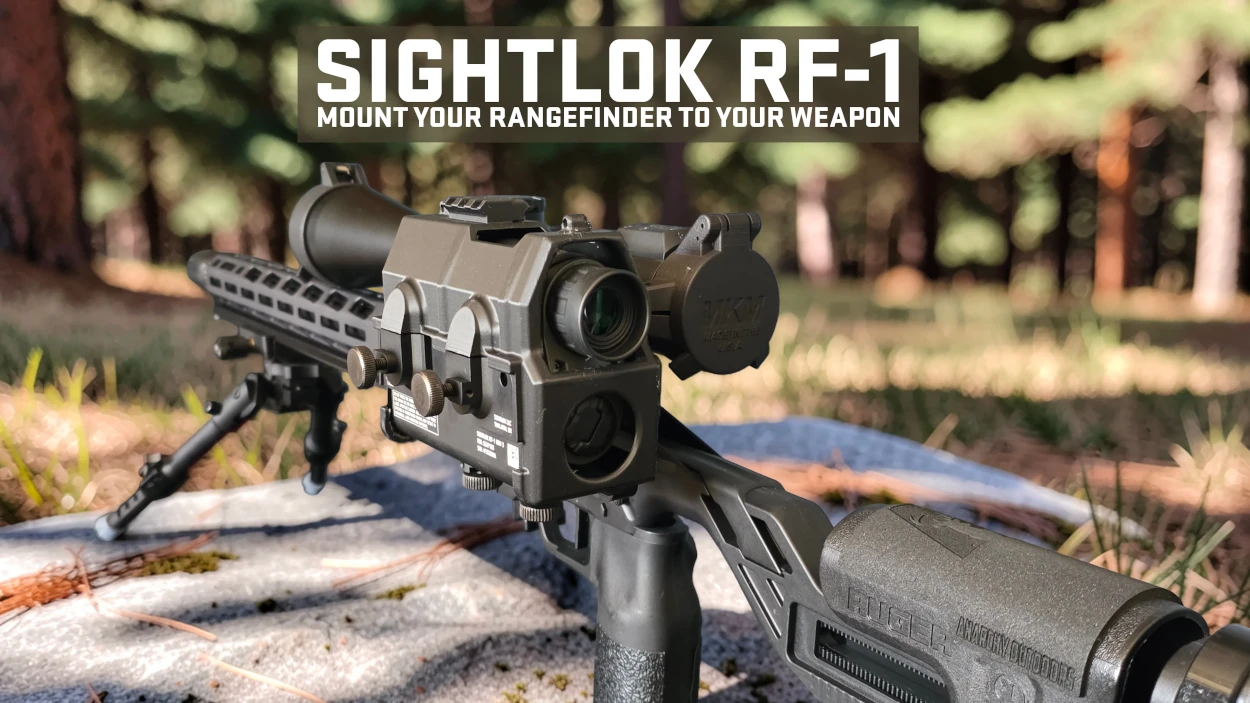

If you shoot or hunt with a rangefinder, the Sightlok RF-1 is a tool which helps you range and shoot faster and more accurately.

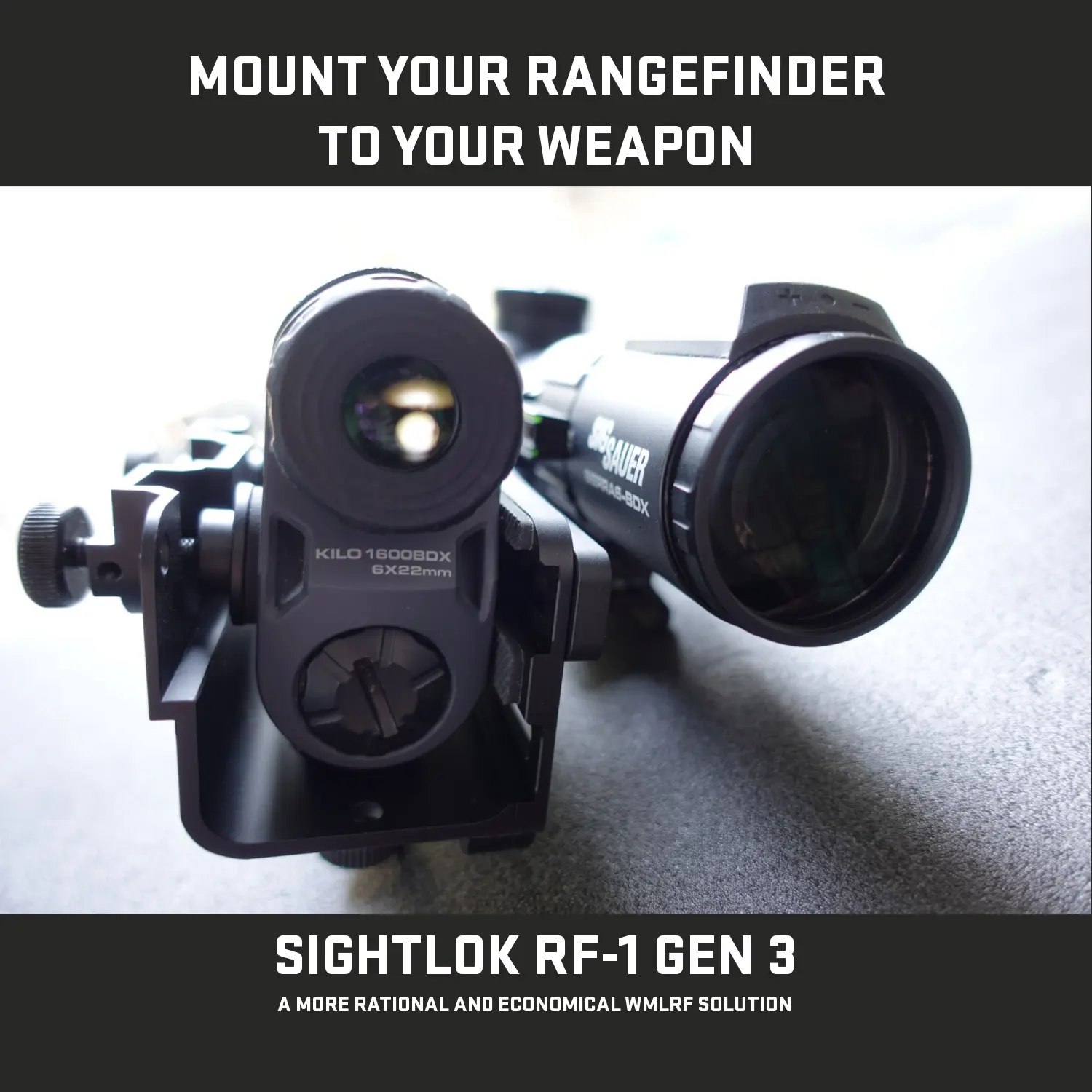

The Sightlok RF-1 is a patent-pending universal rangefinder mount for rifles and crossbows. Azimuth/Windage and Elevation Adjustments enable you to co-align/co-witness your laser range finder with your rifle scope.
Once aligned, the need to separately deploy and aim the rangefinder to range the target is eliminated. Place the scope crosshairs over the target and press the range button, and the step of ranging the target is done.
Benefits include:
– Faster ranging
– More accurate ranging due to better optics and greater stability
– Better view of ranged targets using scope optics
– Scope and rangefinder operate as a single-unit
– Fast view switching between rangefinder & scope
– Faster firing solutions
– Fewer missed shot opportunities
– Increased first round hit potential

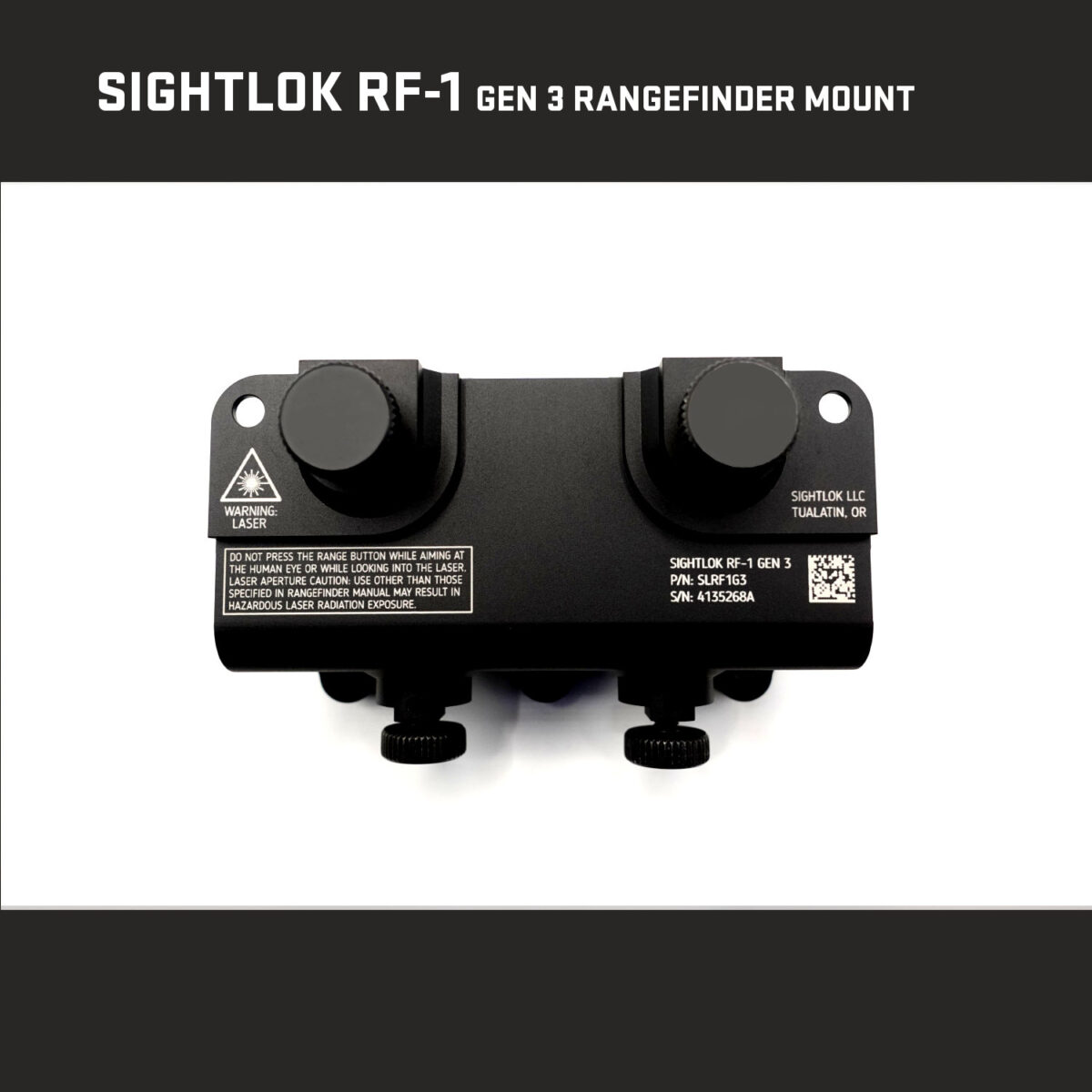

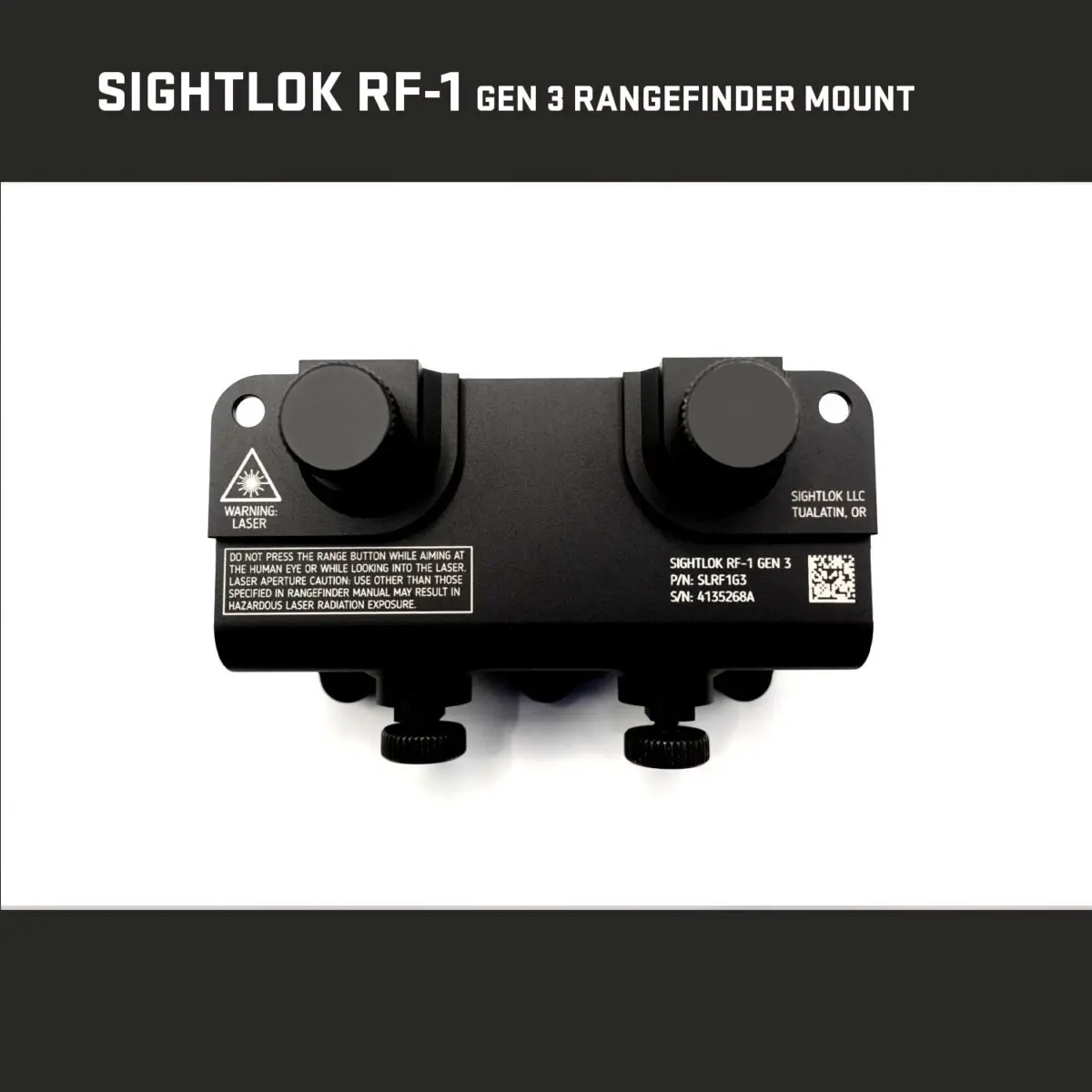

The Sightlok RF-1 is designed and made in the U.S.A. from aerospace grade aluminum alloy with MIL-A-8625 spec Type III anodized hard coat finished in matt black.

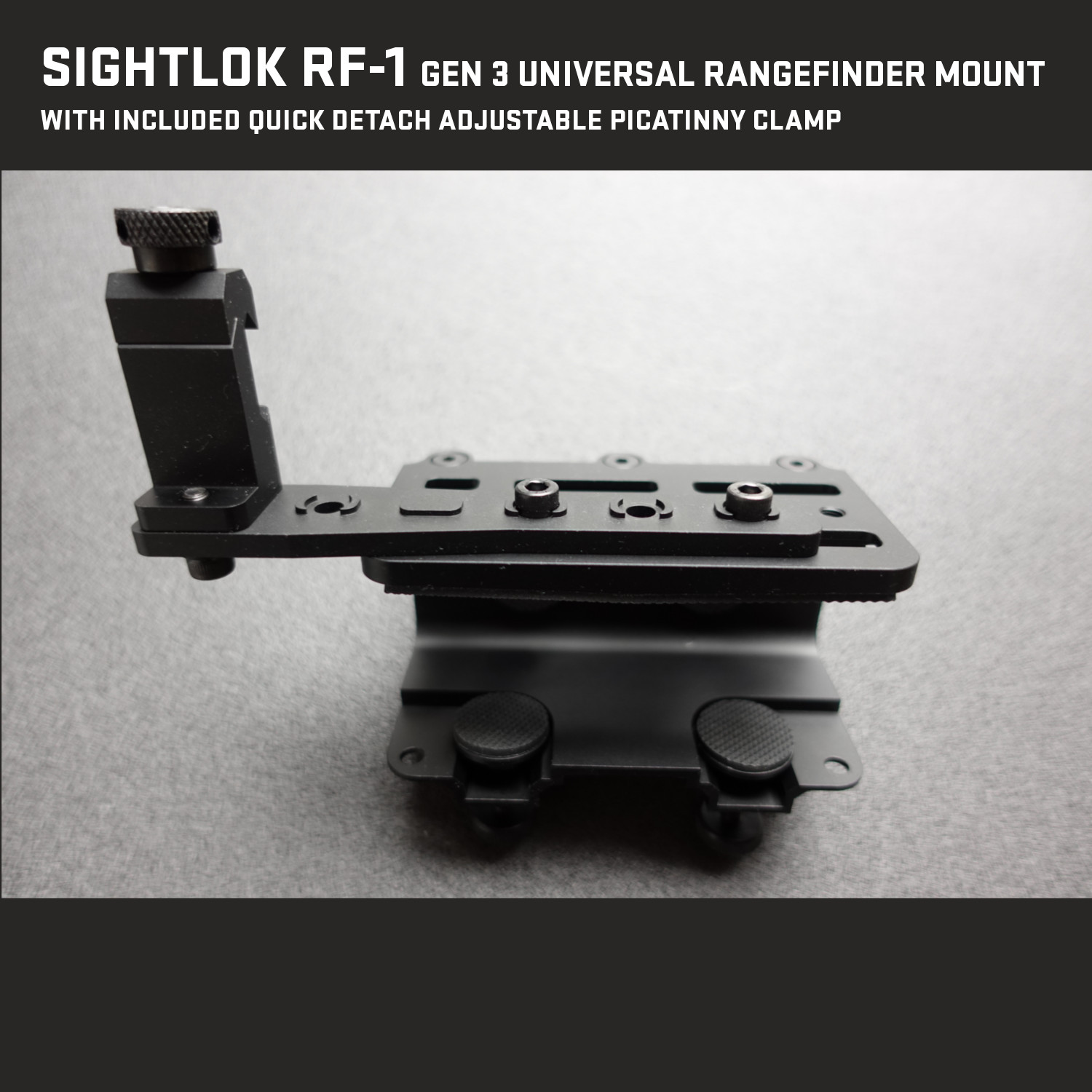

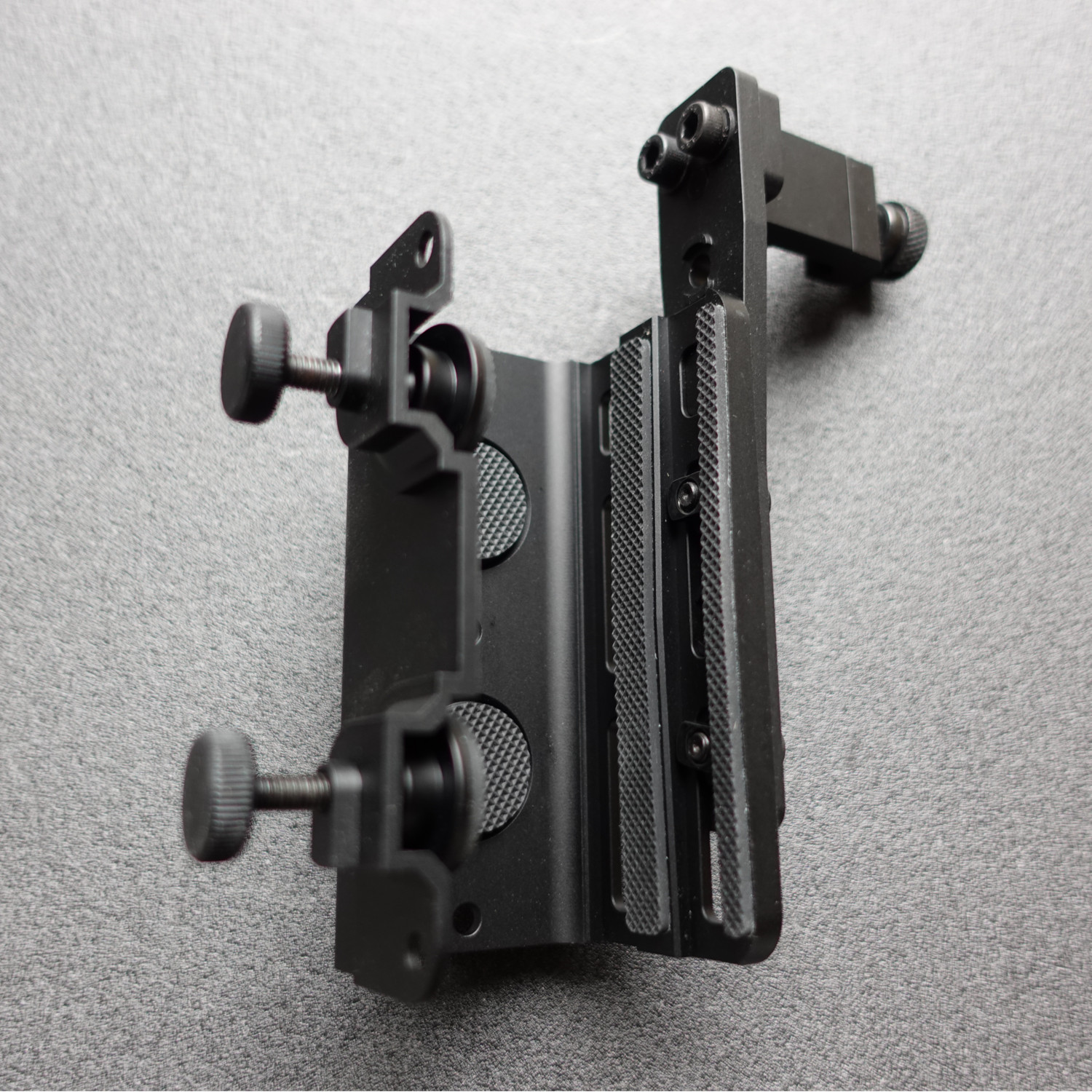

The Sightlok RF-1 features 4 quick hand tightened thumbscrews that provides consistent and secure mounting of laser range finders.
Non-slip rubber on the clamp surfaces ensures that the rangefinder is held securely but not scratched by the clamp.

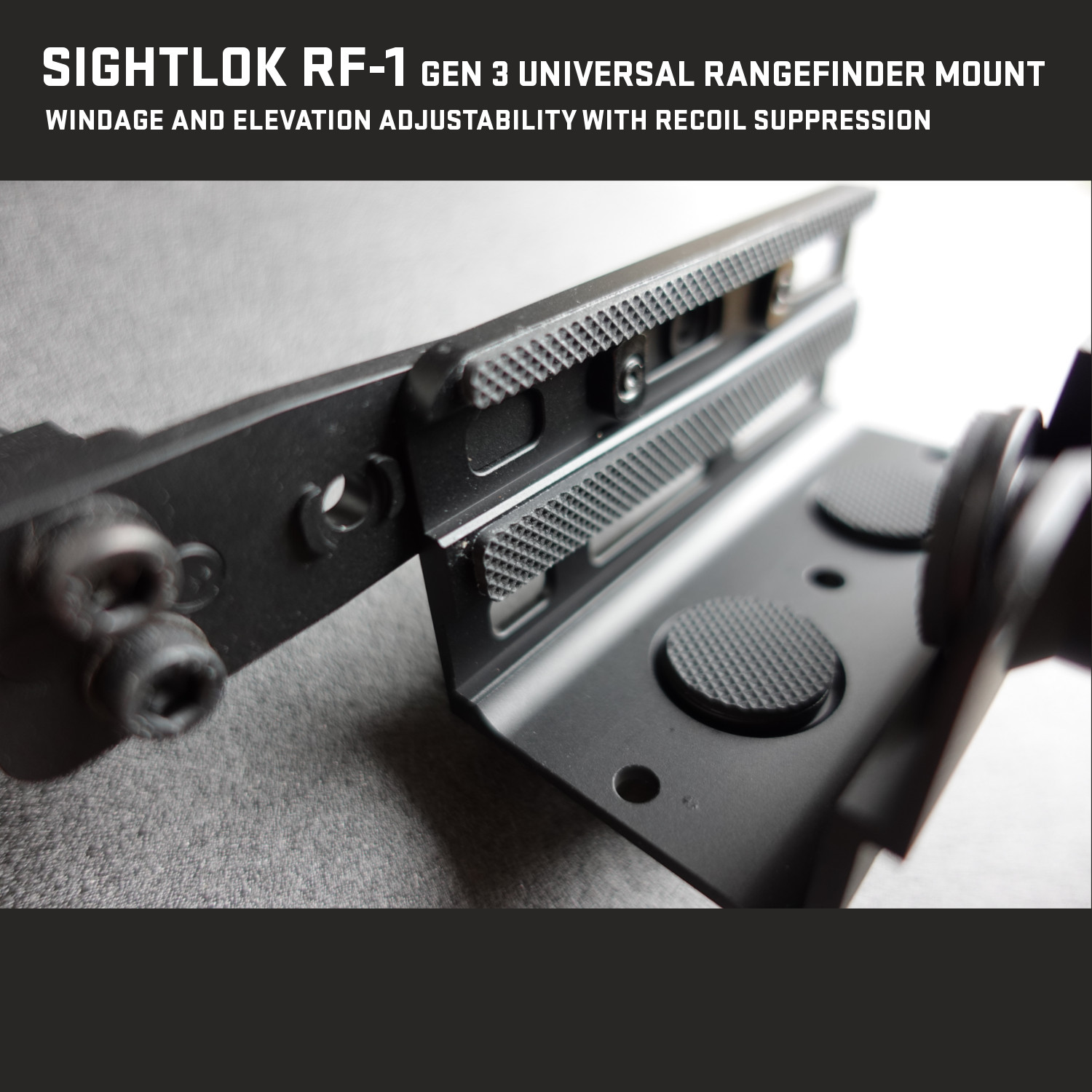

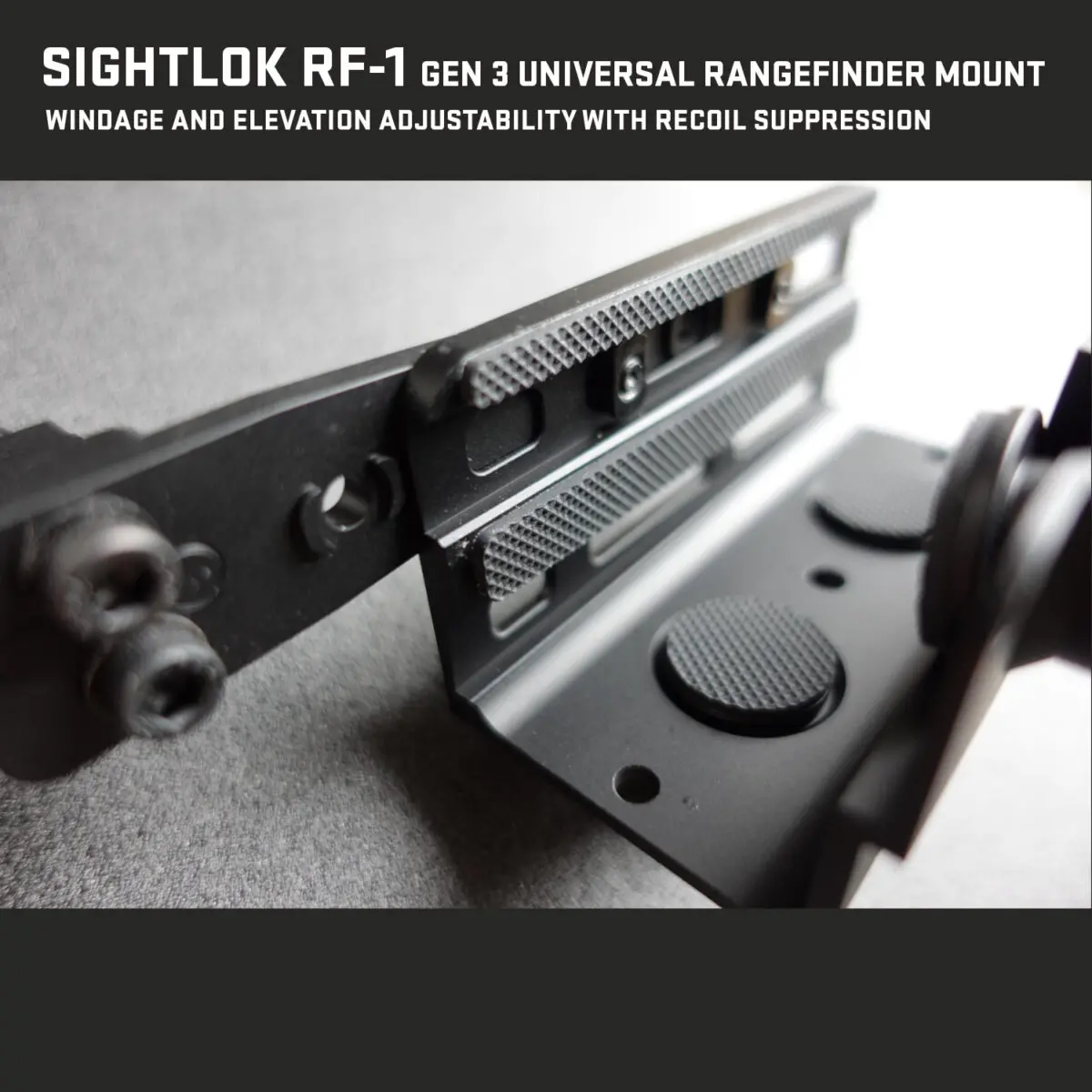

Four adjustable clamps enable the rangefinder point-of-aim to be precisely adjusted to match the point-of-aim of the scope.

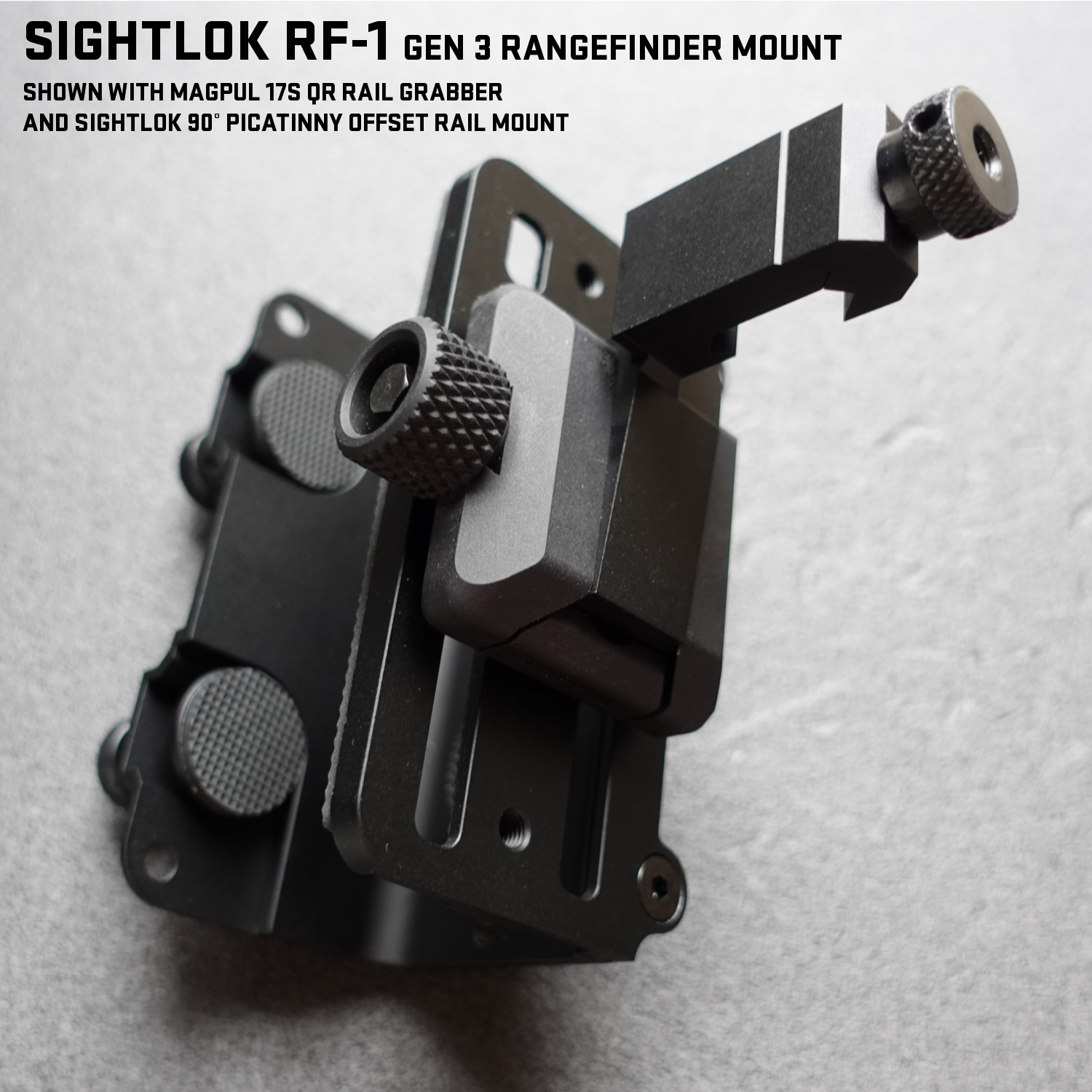

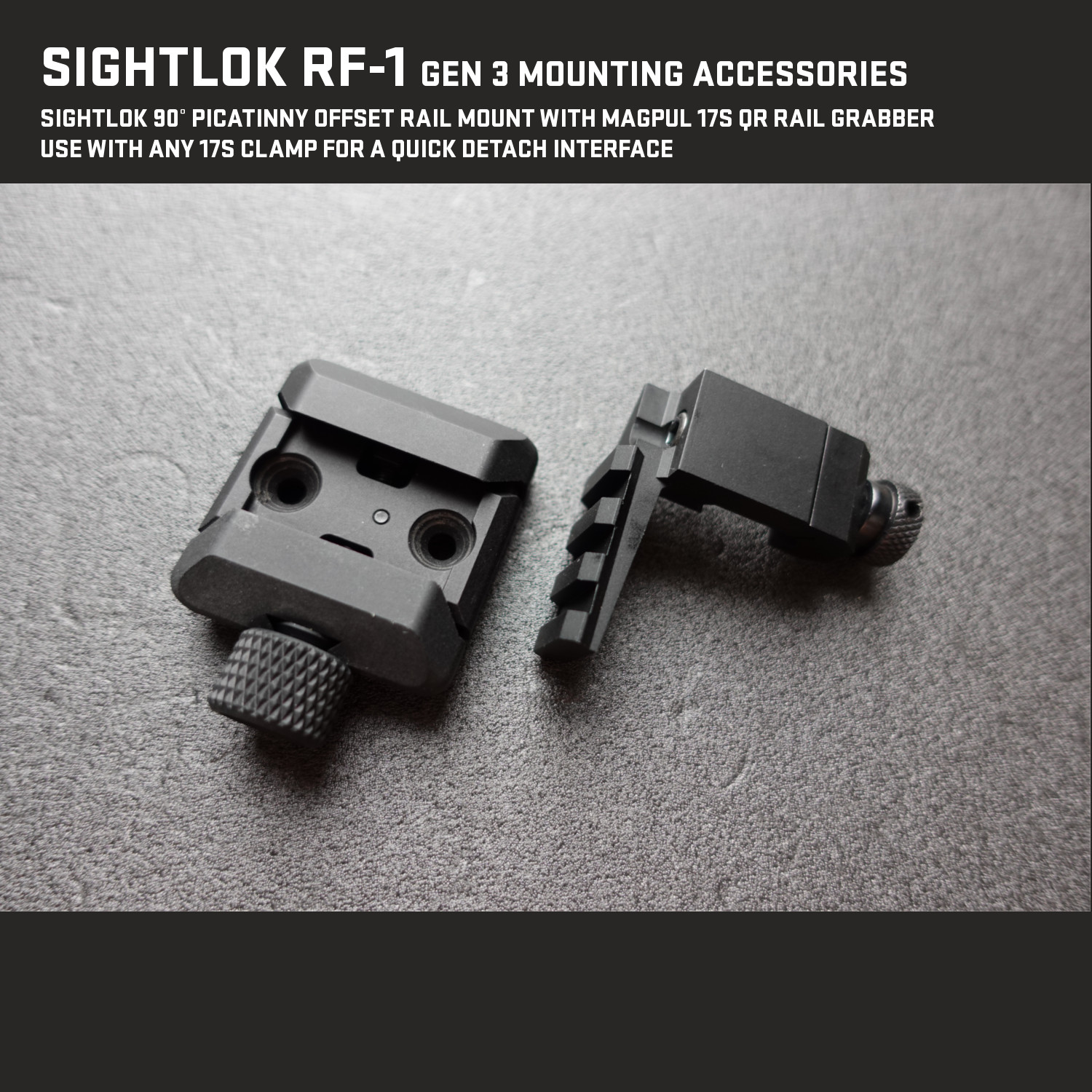

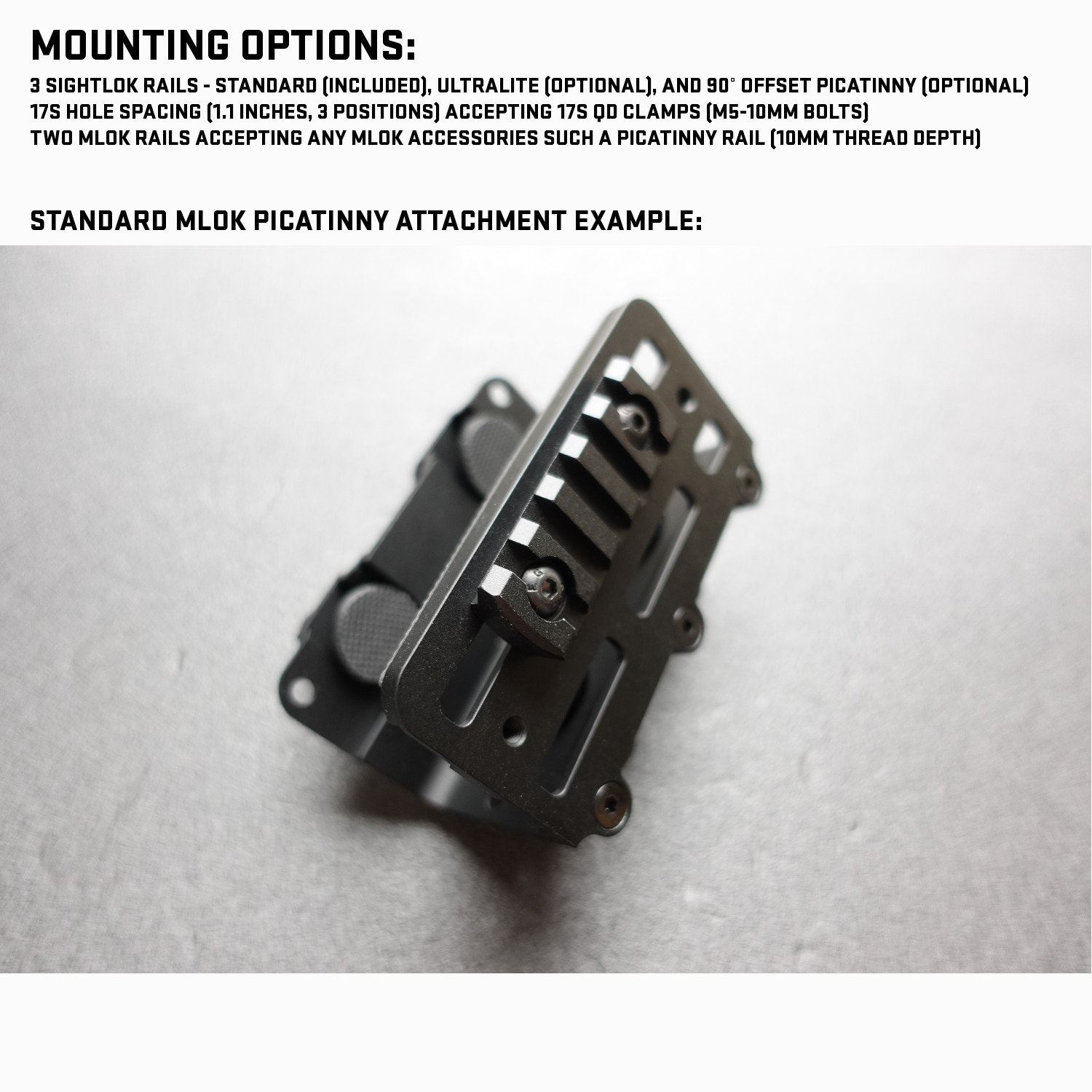

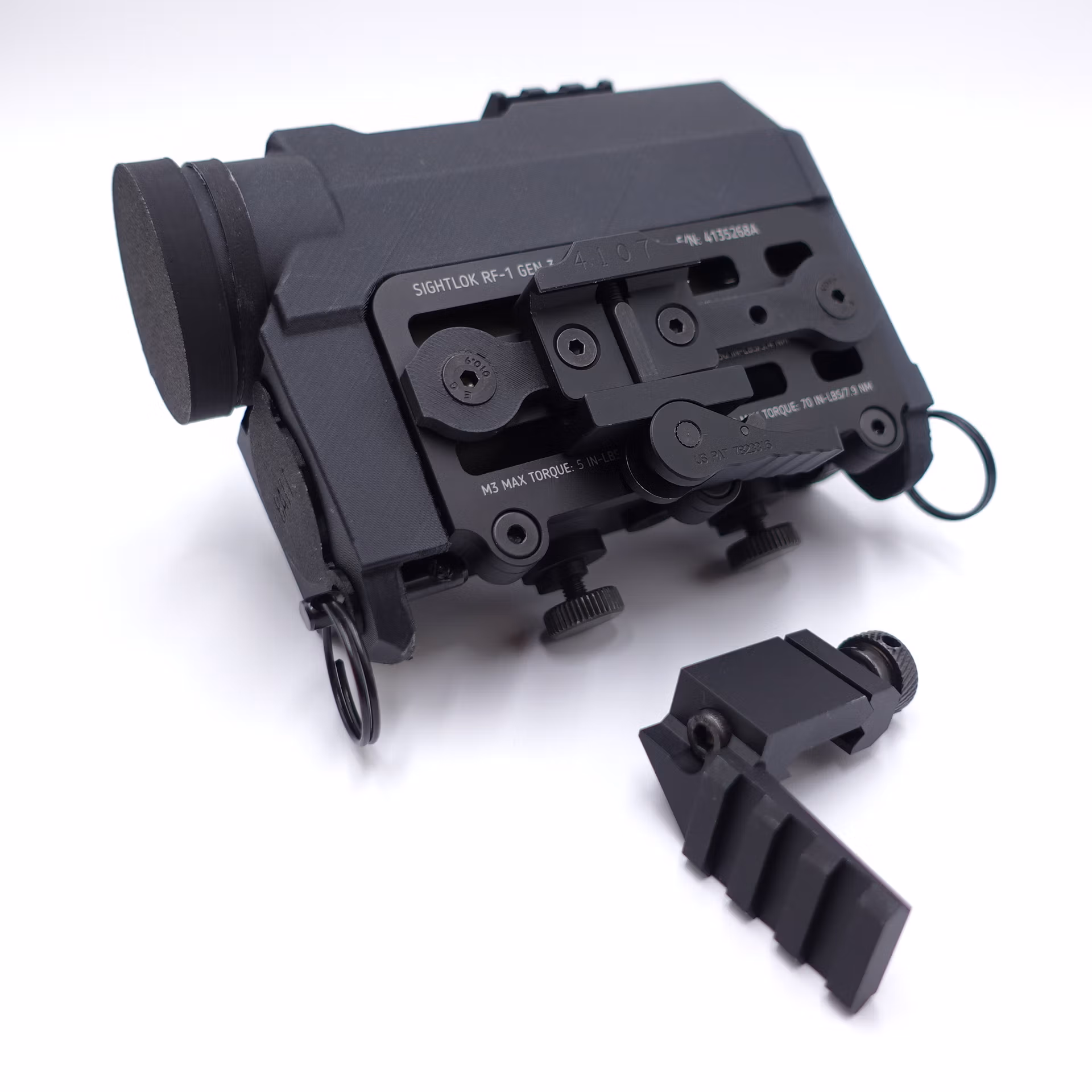

The Sightlok RF-1 mounts securely to any Picatinny (MIL-STD 1913) or Weaver rail.
The benefit of co-witnessing scopes with rangefinders has been proven by the U.S. military, which often employs co-aligned/co-witnessed electro-optics and sensors.
The most recent example of this is the military’s Next Generation Squad Weapon from Vortex®, the NGSW-FC XM157, which includes a variable magnification optic, backup etched reticle, laser rangefinder, ballistic calculator, atmospheric sensor suite, compass, wireless, visible and infrared aiming lasers, and a digital display overlay. The purpose of NGSW-FC to increase the first round hit potential by combining a traditional glass optic with a laser range finder and ballistic computer.

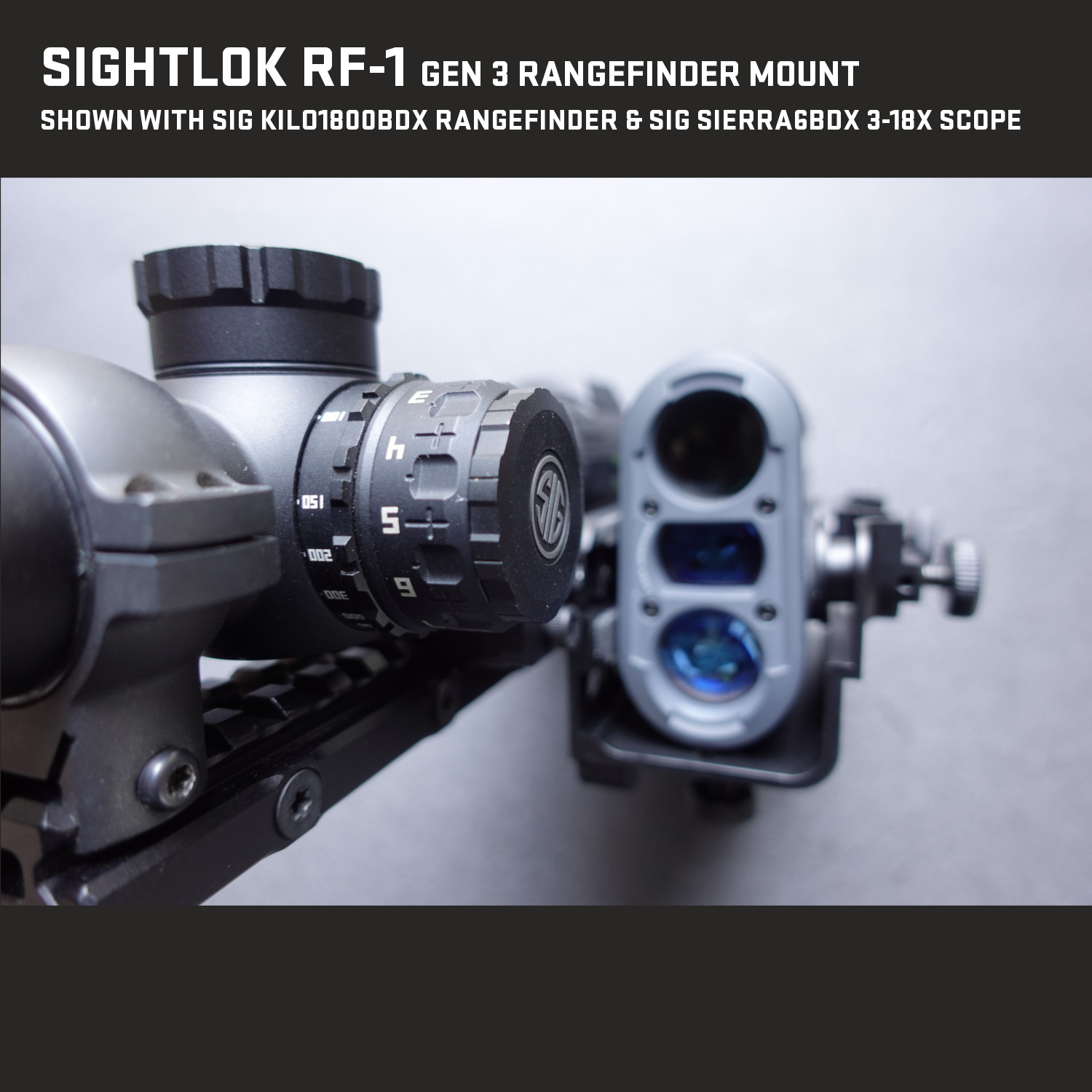

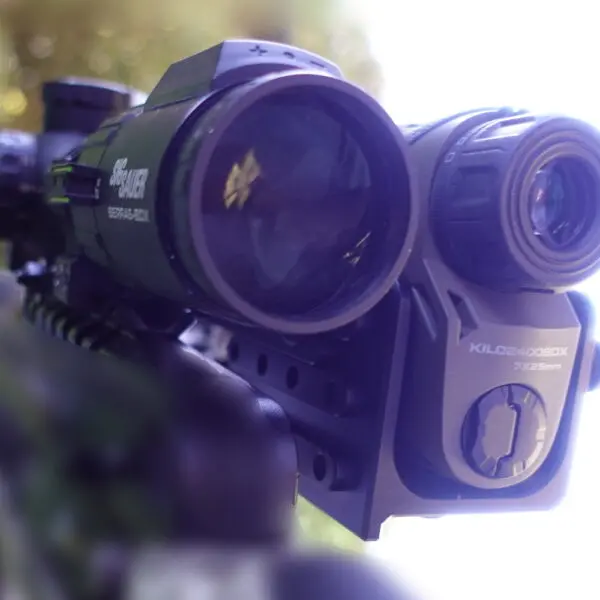

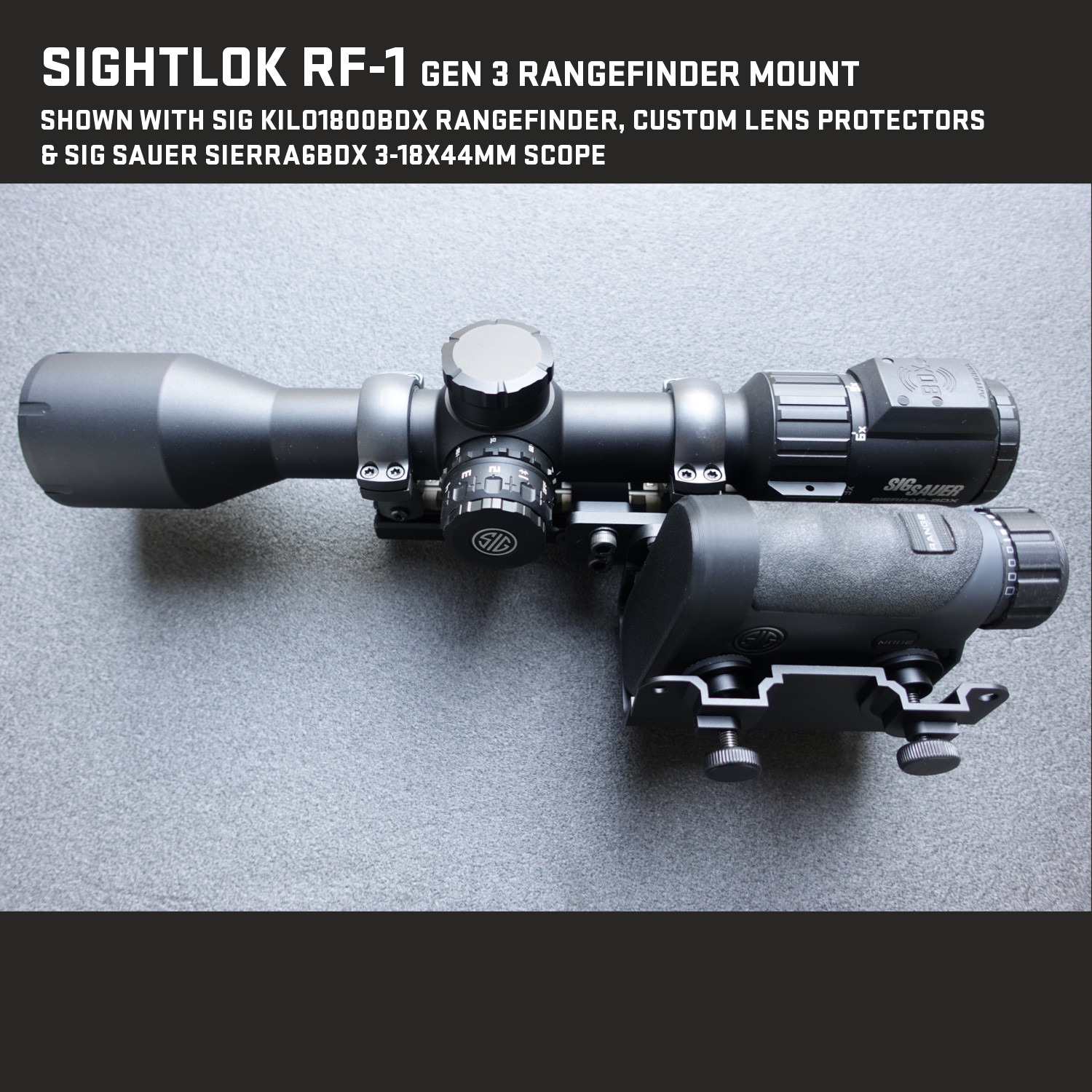

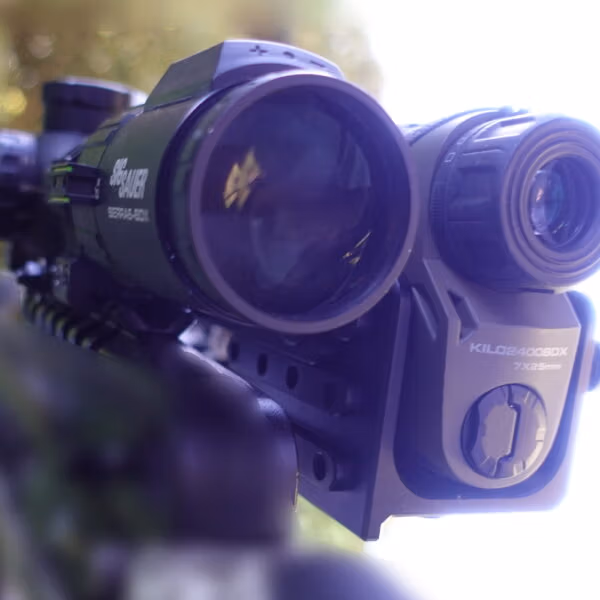

Now, civilians can match key features of the military’s NGSW-FC by combining the Sightlok RF-1 with one of the Sig Sauer line of BDX scopes and range finders, including a co-witnessed scope and rangefinder, ballistic calculator, atmospheric sensor suite, compass, and other smart features.
The Sightlok RF-1 can accommodate any rangefinder with a width of 1.14″ (28.8mm) to 1.58″ (40.2mm). (See list of compatible rangefinders below).

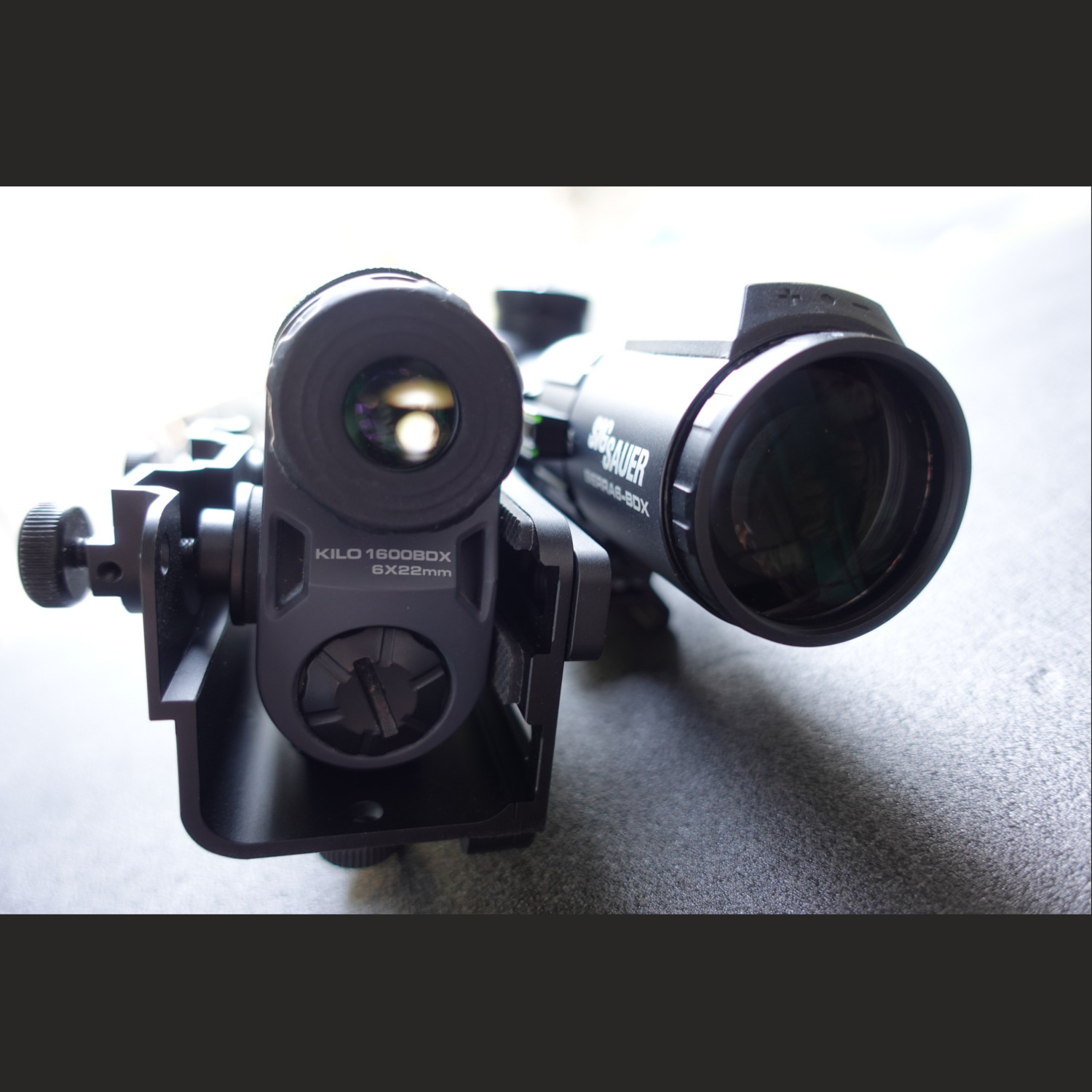

With the exception of the KILO4K and the binocular-format rangefinders, all of the Sig Sauer BDX rangefinders fit the Sightlok RF-1, including the KILO1000BDX, KILO1400BDX, KILO1600BDX, KILO2200BDX, KILO2400BDX, KILO Canyon, KILO1600, KILO3K, KILO5K, KILO8K-ABS, and BUCKMASTERS 1500. A complete list of compatible laser rangefinders is listed below.
The goal of the Sightlok RF-1 is to mount the rangefinder as close to the occular lens of the scope as possible such that the shooter can effortlessly switch between the two. To accomplish this, the placement of the Sightlok RF-1 can be adjusted in all 3 dimensions: height, length, and horizontal distance from Picatinny/Weaver rail.
Rangefinder height adjustment (choose between 3 rails): 1.24″ (31.6mm)

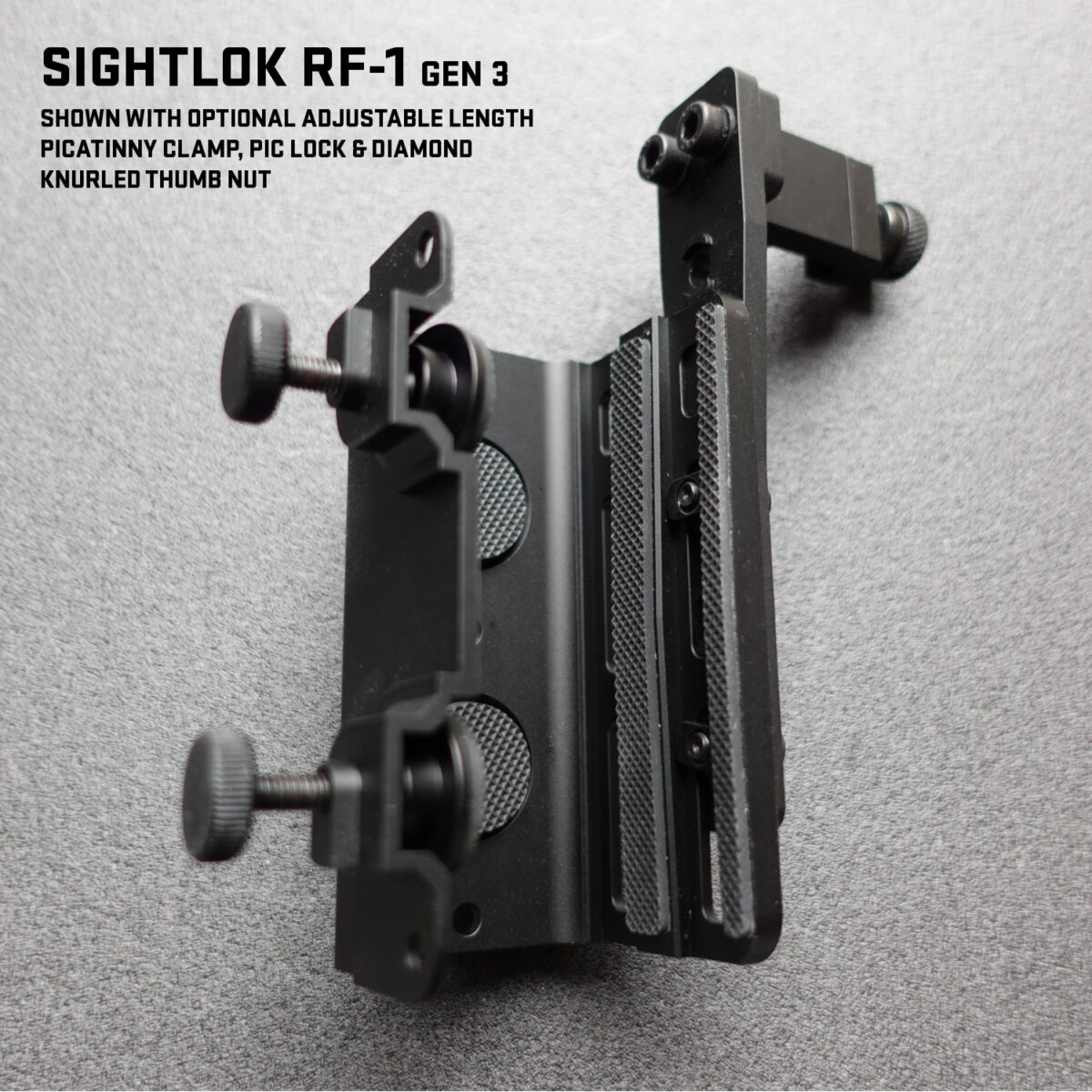

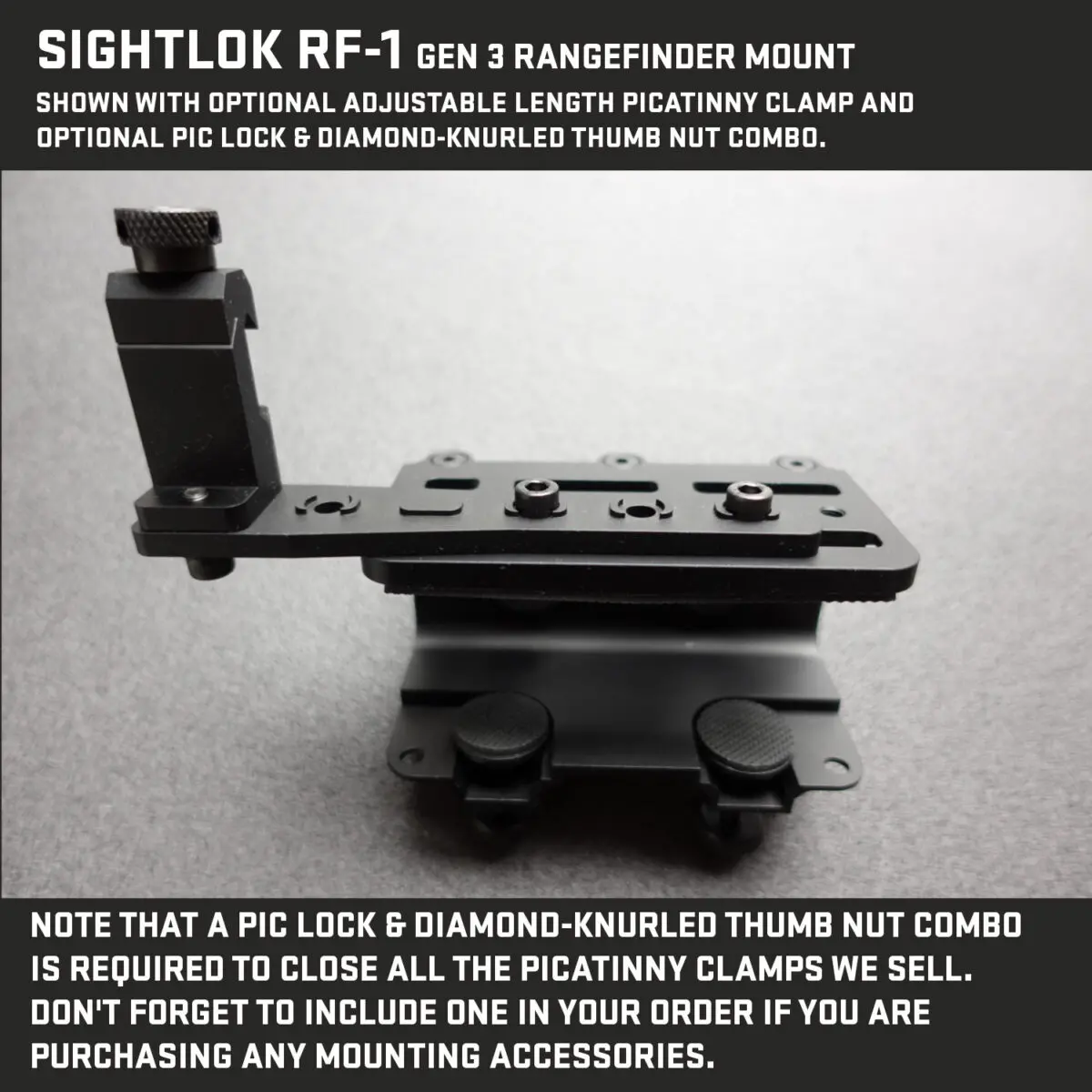

Length adjustment: (sliding variable length as measured from from the front of the rail clamp to the back of the rangefinder holder) 4.3″ (10.9cm) to 6.5″ (16.5cm)

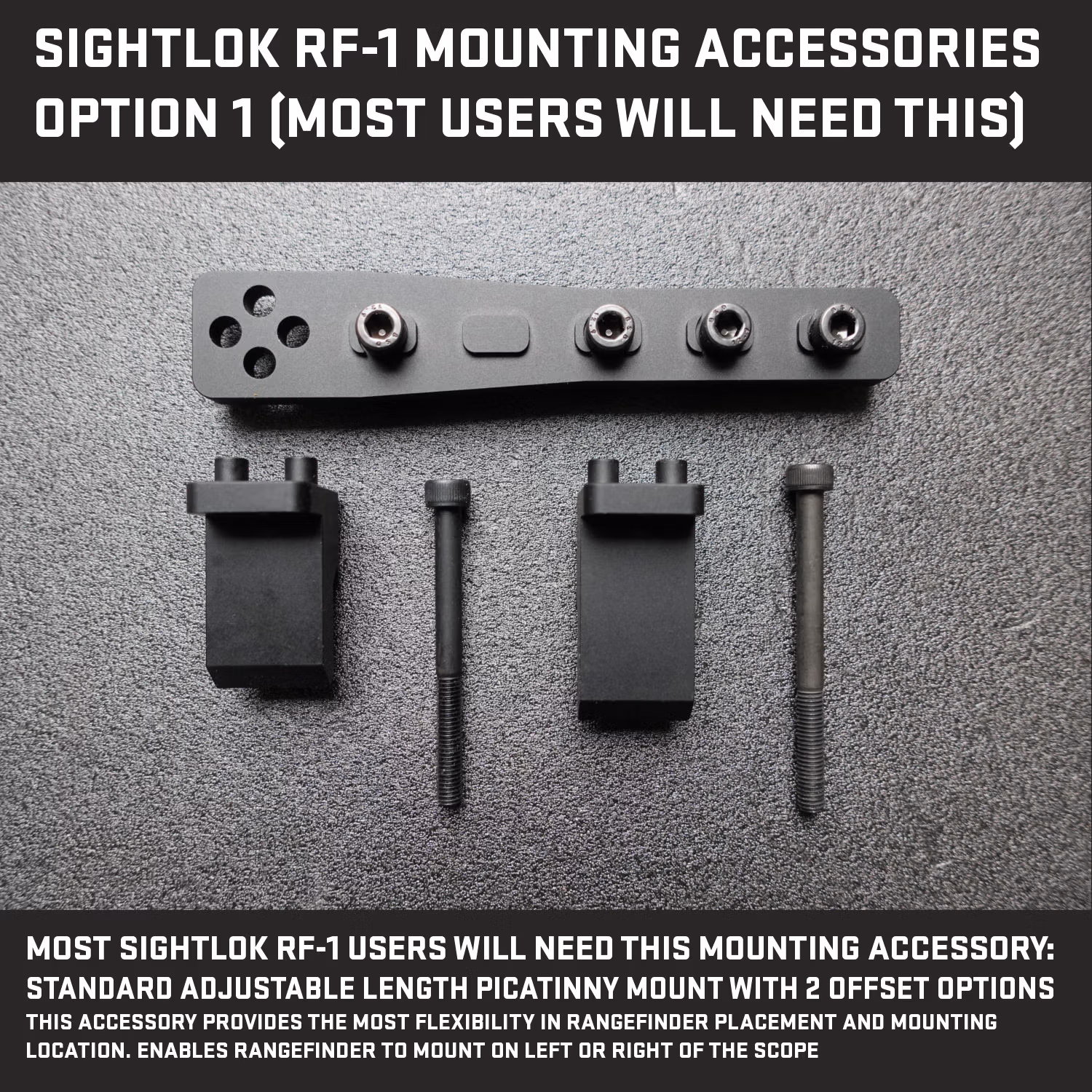

Horizontal distance from Picatinny/Weaver rail adjustment (3 different-length options are included):
Small: 1.38″ (3.5cm)
Medium: 1.62″ (4.1cm)
Large: 1.94″ (4.9cm)
Having variable options for horizontal distance from the Picatinny/Weaver rail ensures that the rangefinder laser can clear windage/brightness/focus knobs/focus rings on the scope.

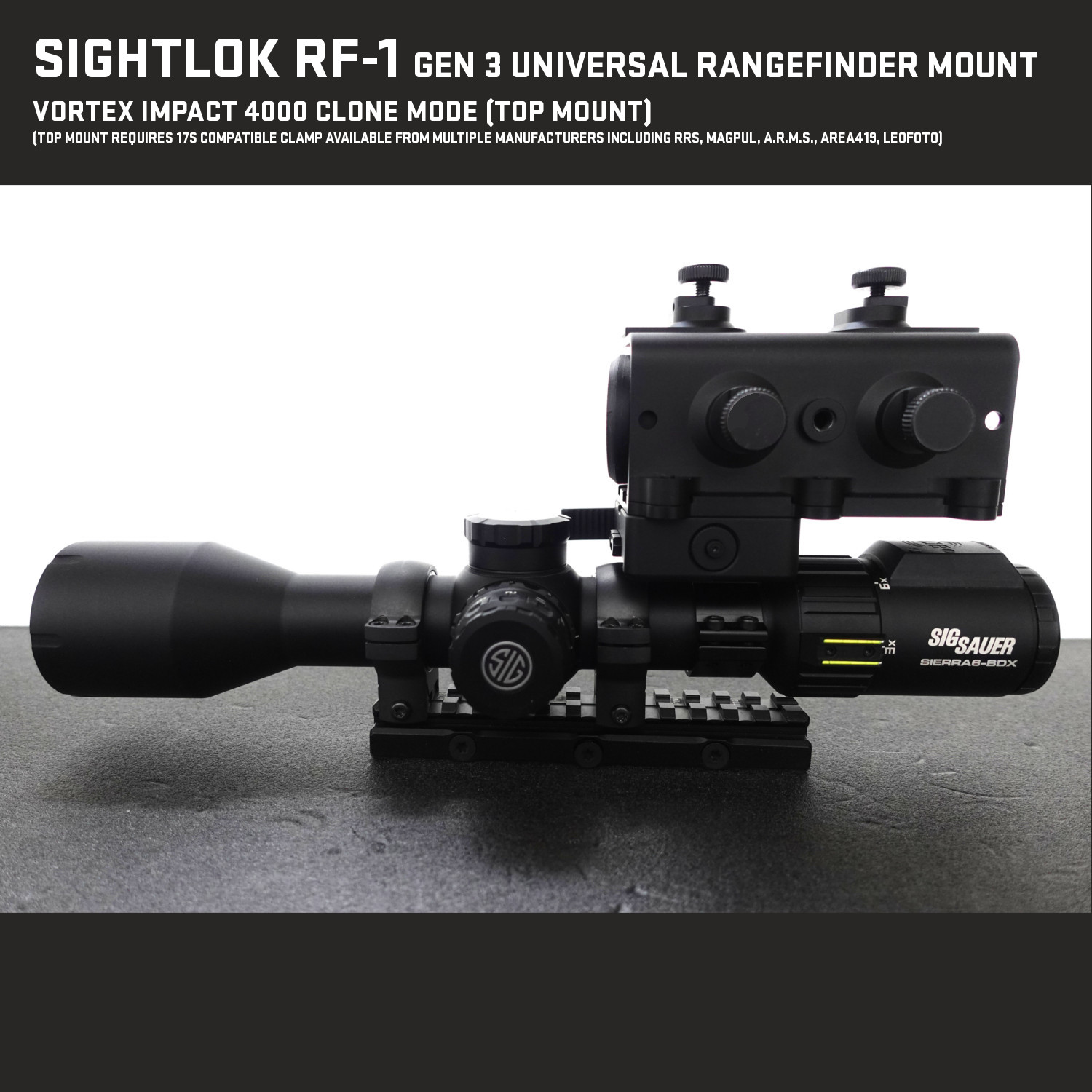

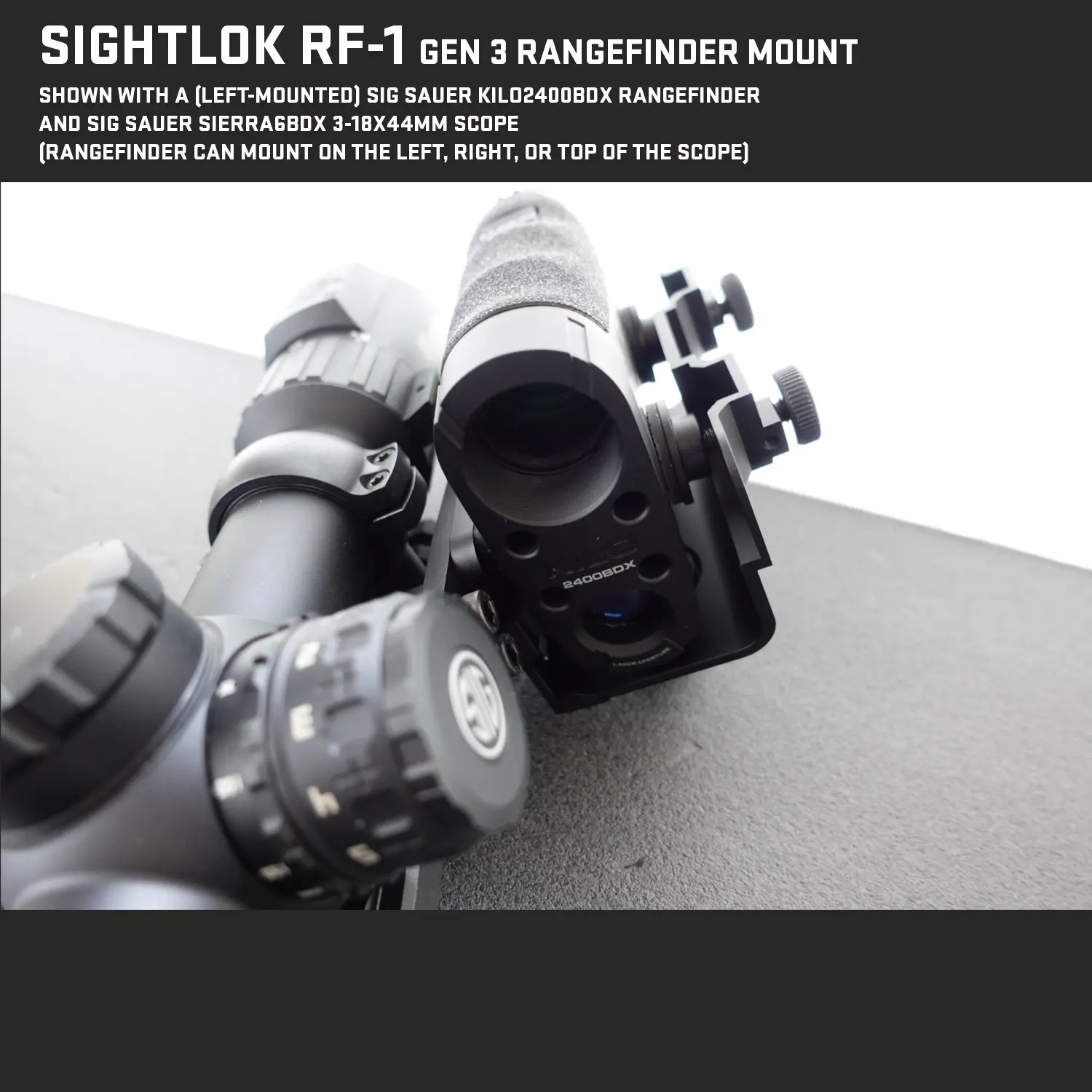

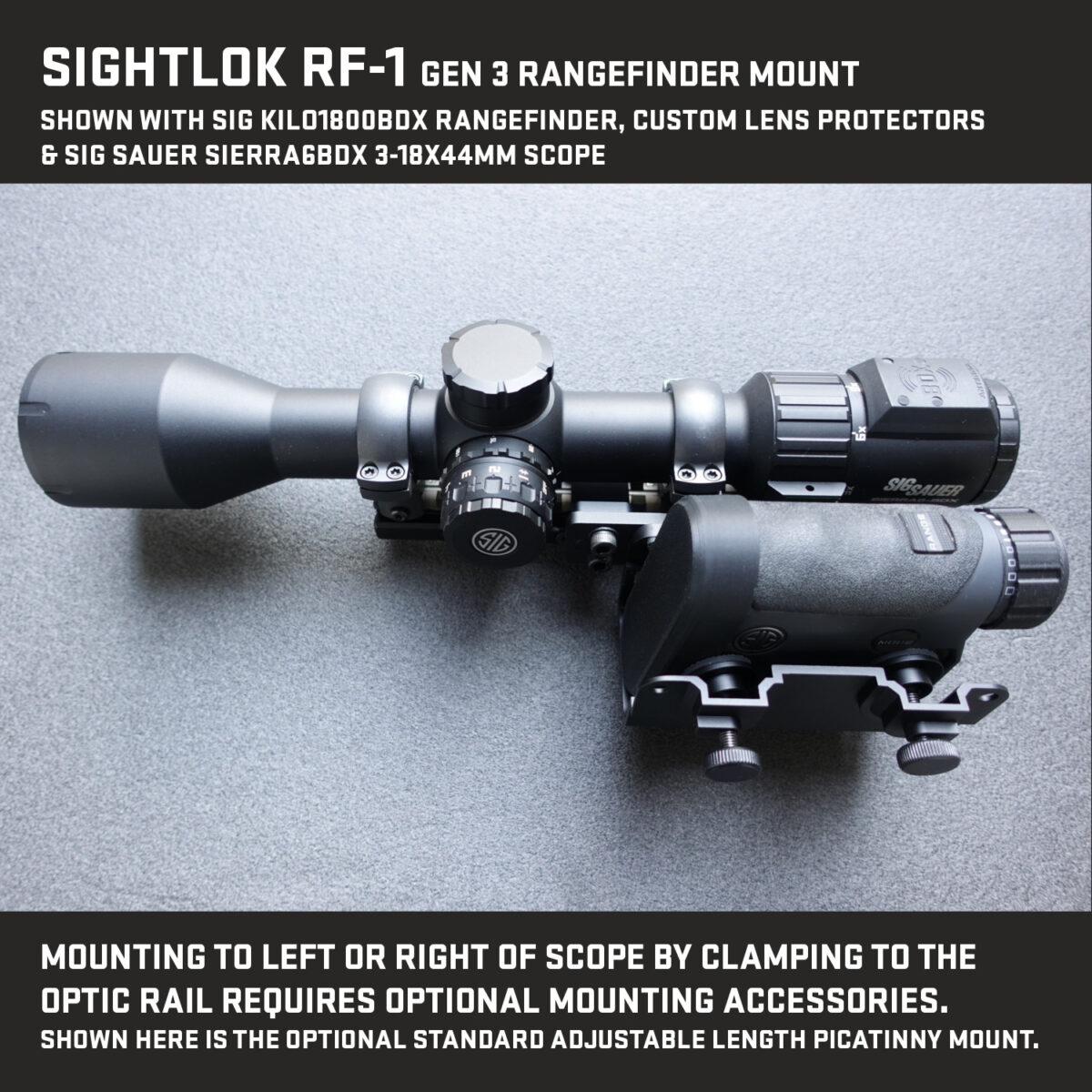

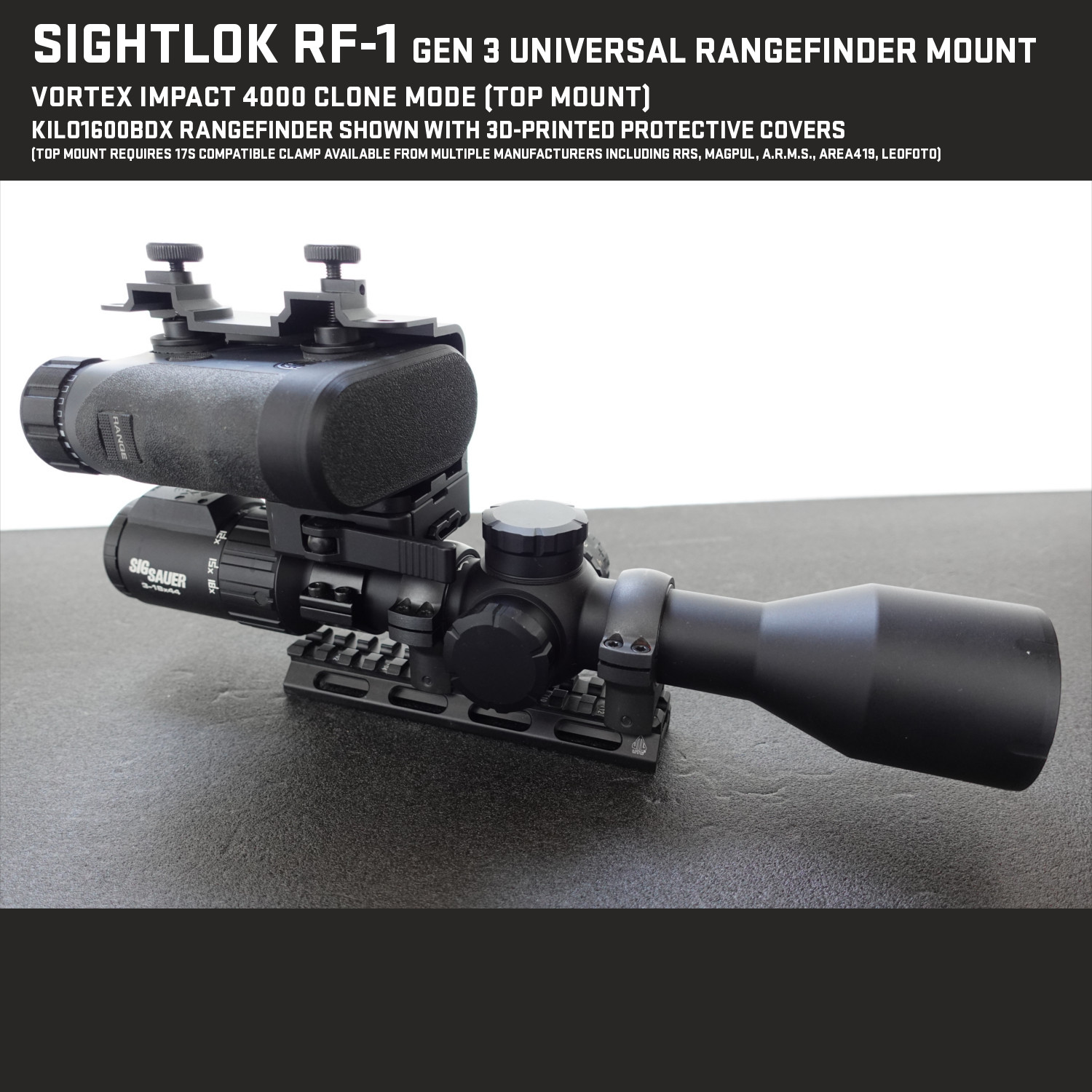

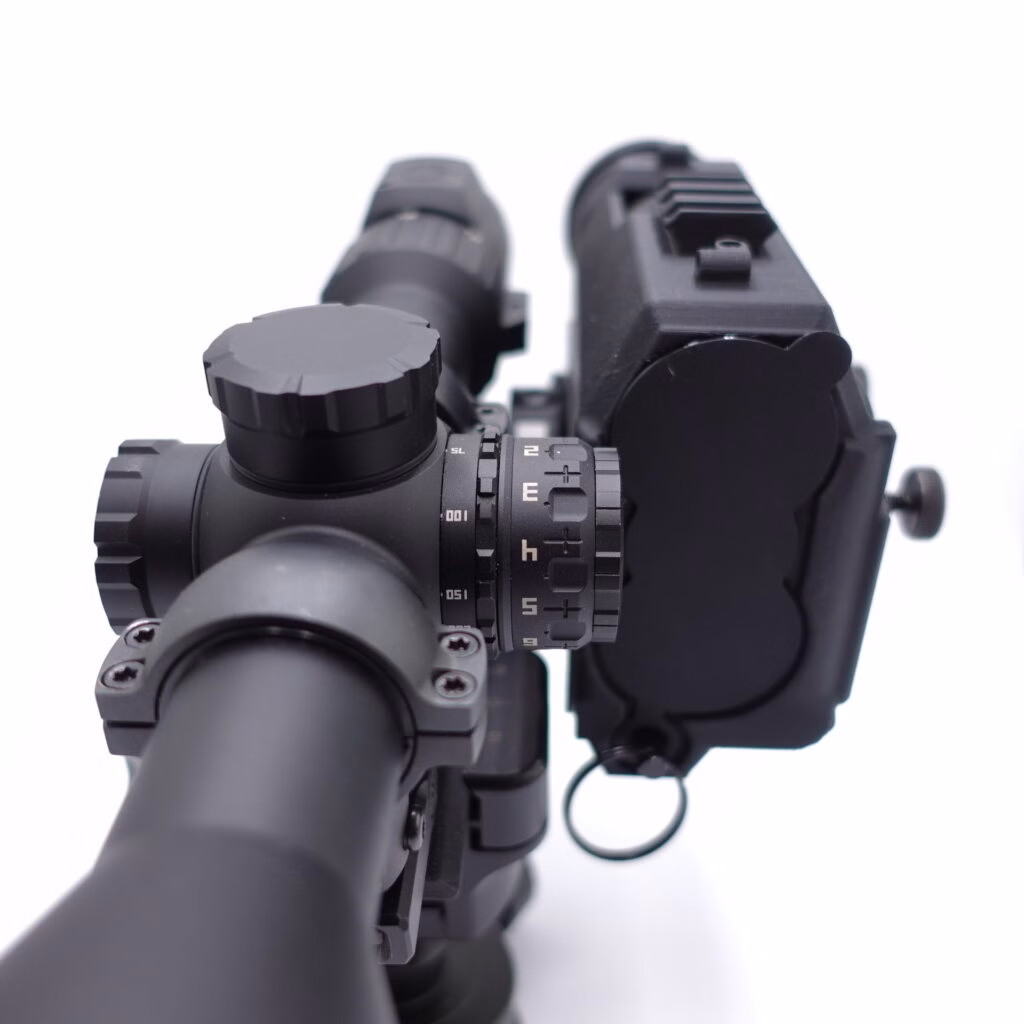

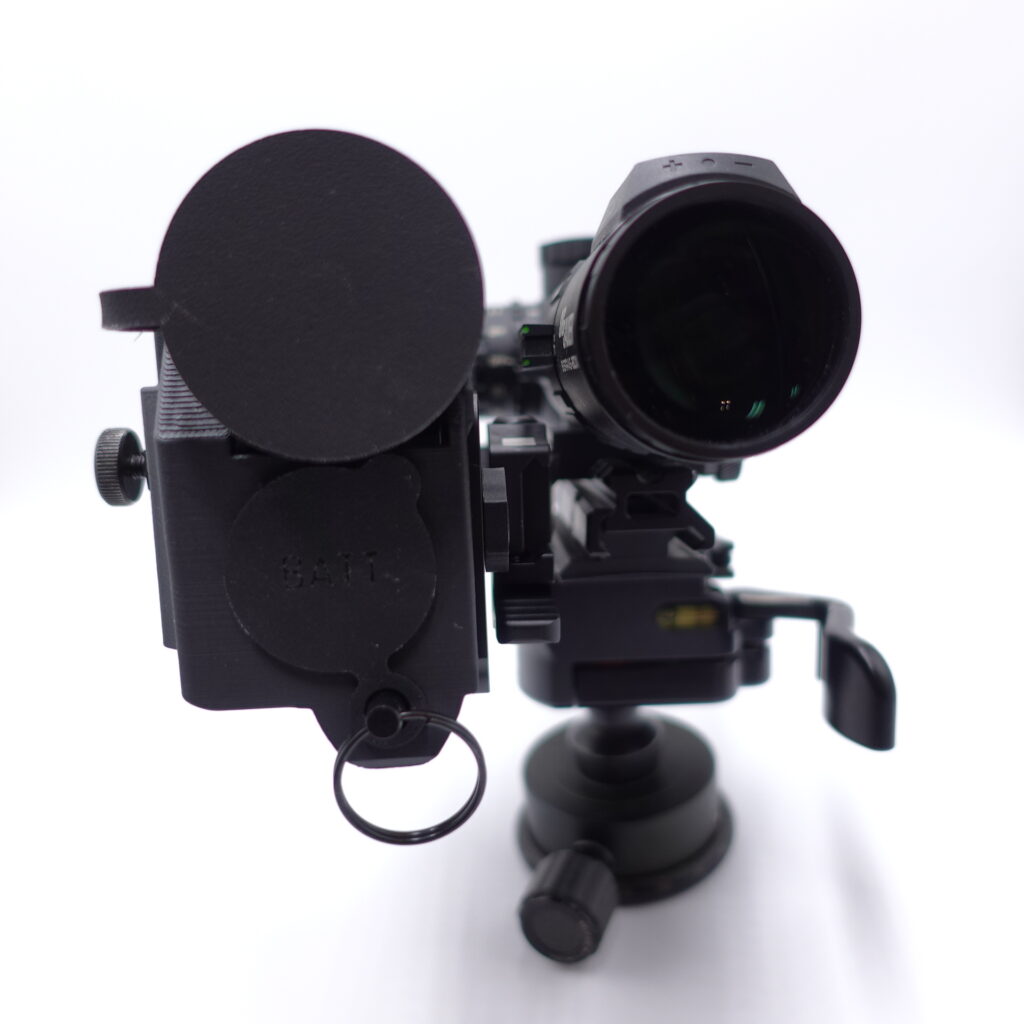

The Sightlok RF-1 can position the rangefinder on either the left or right side of the scope. It needs just 0.25″ (6.5mm) of clearance between the top of the rail and the bottom of the scope to mount under the scope. It can also be flipped and mounted to the rail under the scope occular if other mount points are obstructed.
Weight:
9.4 to 9.7 ounces (268-275 grams), depending on configuration
Assembled dimensions:
Height: 2.2″ (55.8mm)
Width (adjustable): 3.8″-4.3″ (95-108mm)
Length (adjustable): 4.3″-6.5″ (10.9-16.5cm)

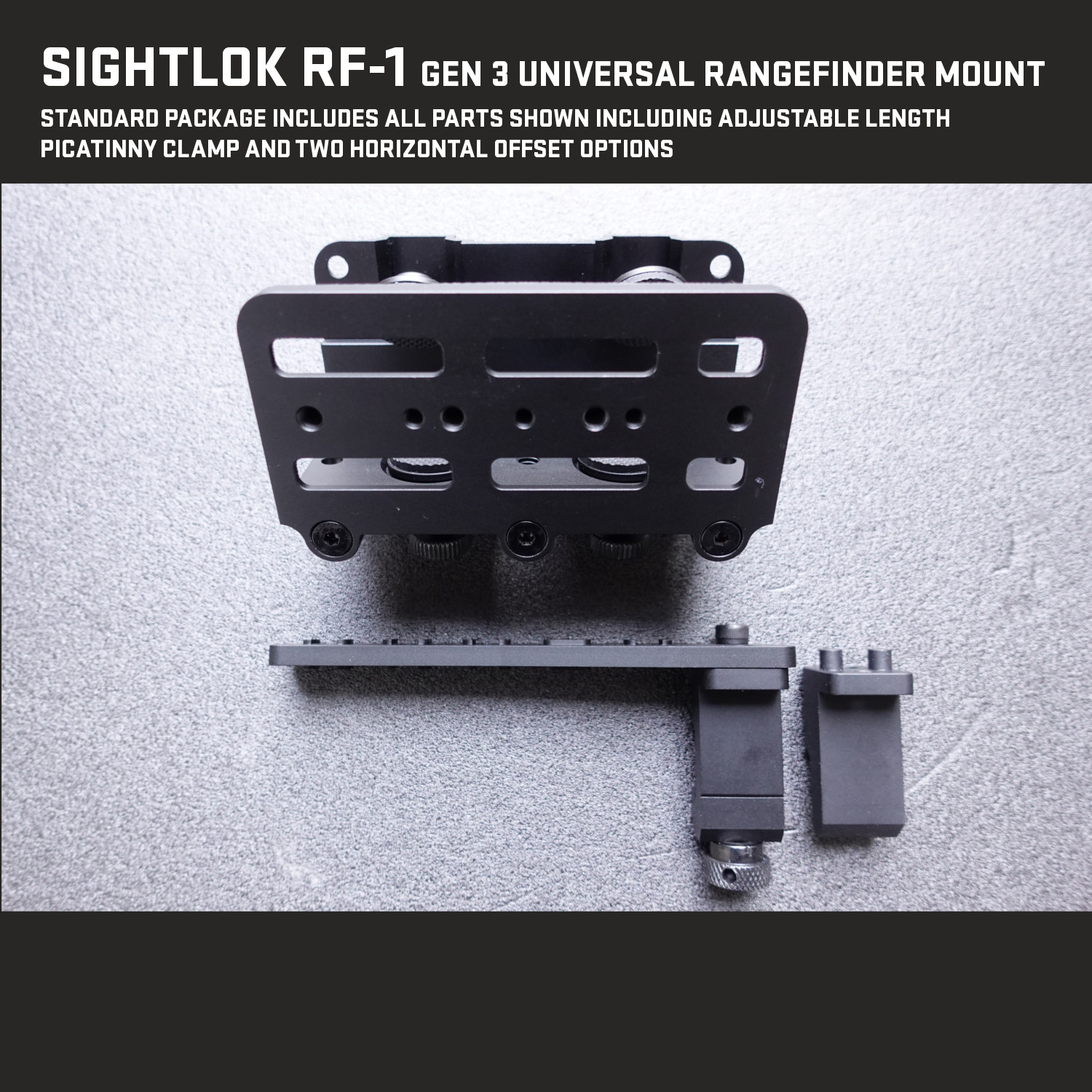

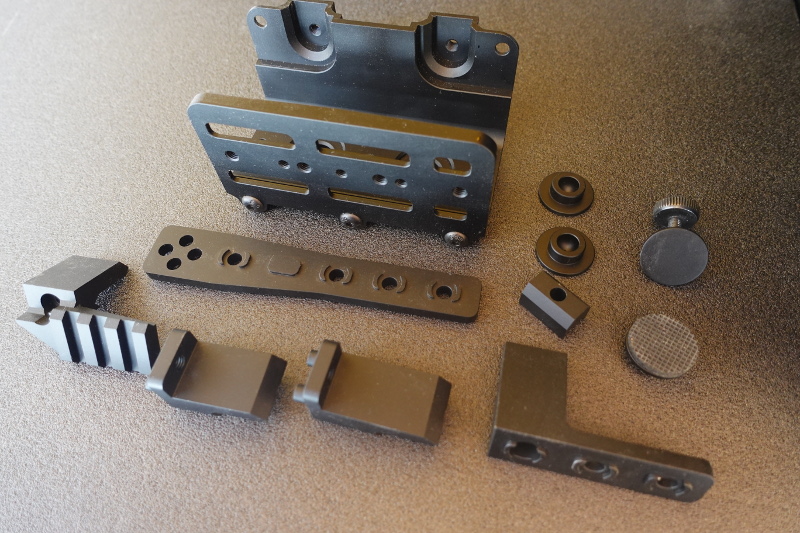

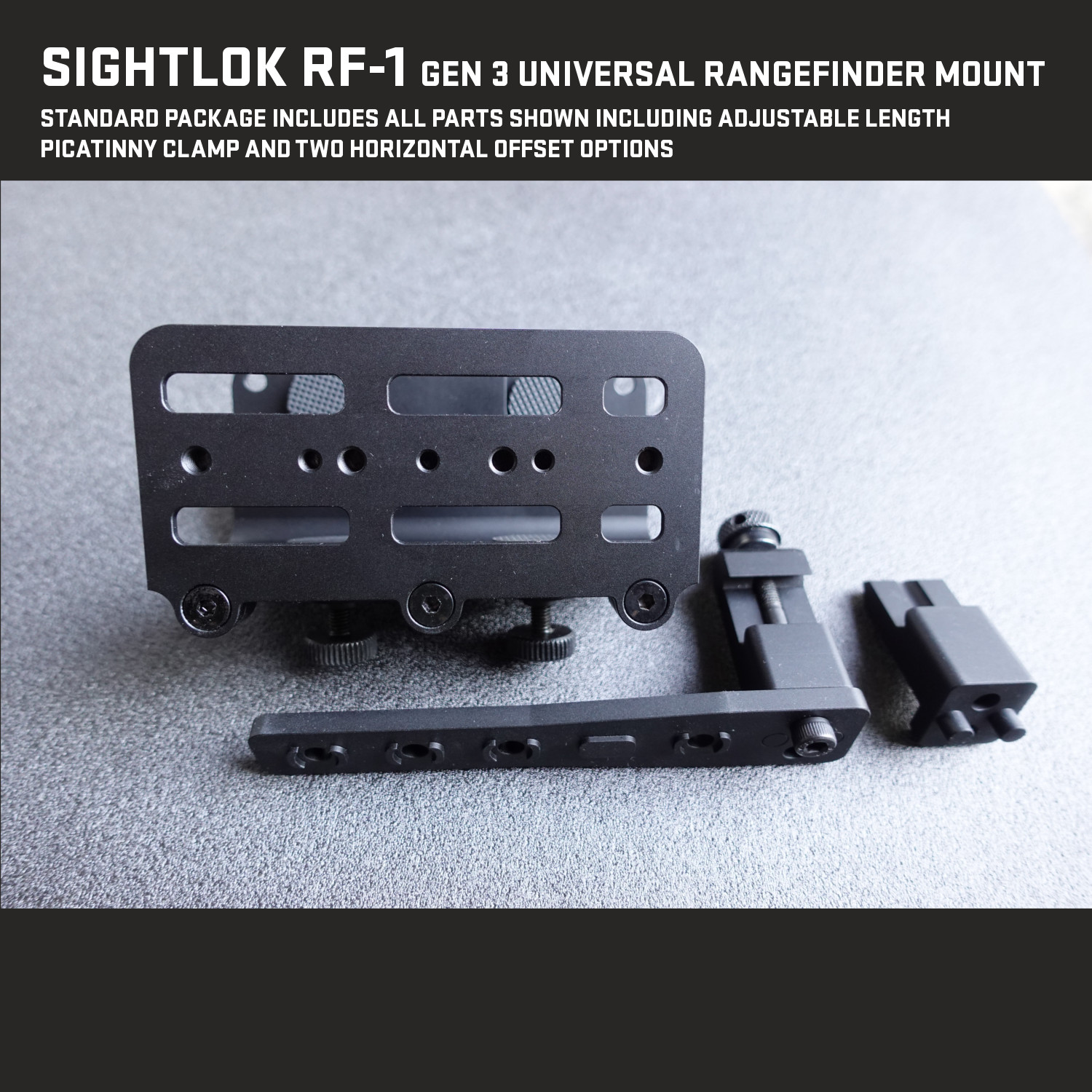

Parts included:
Aluminum Rangefinder Clamp
Aluminum Lever Arm
Aluminum Short Rail Clamp
Aluminum Medium Rail clamp
Aluminum Long Rail Clamp
Aluminum Rail Clamp Lock
Carbon Steel Elevation & Windage Bolts
Carbon Steel Mounting Nuts and Bolts
LIFETIME WARRANTY:
SIGHTLOK warrants that the Sightlok RF-1 mount you purchase was originally manufactured free of defects in material, workmanship, and mechanical function. For the lifetime of the original purchaser, SIGHTLOK agrees to correct any defect in the mount for the original purchaser by repair, adjustment, or replacement, at SIGHTLOK’s option, with the same or comparable quality components (or by replacing the mount at SIGHTLOK’s option); provided however that a Return Merchandise Authorization (RMA) is first obtained by contacting SIGHTLOK Customer Service.
IMPORTANT: THE SCOPE & RANGEFINDER SHOWN IN PICTURES ARE FOR DEMONSTRATION PURPOSES ONLY AND ARE NOT INCLUDED WITH PURCHASE.
==
According to manufacturer information, the following rangefinders will fit the Sightlok RF-1:
AILEMON AL19 and AL34
AOFAR HX-1100V
Astra Optix HTX1600, OTX1600, OTX2400A, OTX2400B
Astra Optix Pro A-1
Athlon Optics MIDAS 1 and MIDAS G2 1
Athlon Optics TALOS 800Y and TALOS G2 850Y
ATN LASERBALLISTICS 1000 and 1500
Burris Signature LRF 2000
Bushnell Broadhead
Bushnell LE1300SBL, LE1700SBL, LP1300SBL, LP1700SBL
Bushnell Prime 1800
Covert Optics ThermX TRF 1600
Crimson Trace Horizonline 2000 and 4000
German Precision Optics Rangetracker 1800
Gogogo Sport Vpro GS03, GS19, GS24MTL, GS60
Gunwerks Revic BR4 Ballistic
Hawke Optics ENDURANCE 1000, 1500, 700
Hawke Optics LRF 400 and 800
Hawke VANTAGE 400, 600, and 900
LaserWorks True 1000
LEICA Pinmaster II Pro
LEICA Rangemaster 2400-R, CRF 2800.COM, CRF 3500.COM
Leupold RX-1400i TBR/W, RX-1500i TBR/W, RX-1600i TBR, RX-2800 TBR, RX-FullDraw 5
Luna Optics LRF1300M-PRO & LRF2400M-PRO
MiLESEEY PF210-H
Nikon COOLSHOT 50i
Nikon PROSTAFF 1000 and 1000i
NUTREK RF08P 5-1200
Osprey Global RF-OSP-400SP
Praktica LRF-7G
Profey Vpro X5
PulsNell TX-750
REVASRI NK-1000
Rudolph Optics RF M1200 Micro
SereneLife SLGRF20SL
SG Surgoal RS 1200
Sig Sauer KILO1000BDX, KILO1400BDX, KILO1600BDX, KILO2200BDX, KILO2400BDX, KILO Canyon, KILO1600, KILO3K, KILO5K, KILO8K-ABS, and BUCKMASTERS 1500
TecTecTec ProWild 1, ProWild 2, ProWild S
TIDEWE HD-700E and TIDEWE HR-F700
Vortex Optics Crossfire HD 1400 and Impact LRF101
WOSPORTS H-111H
X-Vision PDLC RFP875 and RFO1600
—
The following rangefinders are believed to be too wide to fit the Sightlok RF-1:
ACPOTEL PF2E
AOFAR HX-1200T
AOFAR HX-700N
Bushnell BoneCollector 850
Bushnell BoneCollector 202208
Gogogo Sport Vpro
Nikon COOLSHOT PRO II
Nikon Laser 50
Sig Sauer KILO4K
Vortex Optics Diamondback HD 2000
Vortex Optics Viper HD 3000
Vortex Optics Razor HD 4000
DISCLAIMER / WARNING:
Recoil from high-caliber rifles can damage weapon-mounted rangefinders. Use at your own risk.
IMPORTANT: THE SCOPE & RANGEFINDER SHOWN IN PICTURES ARE FOR DEMONSTRATION PURPOSES ONLY AND ARE NOT INCLUDED WITH PURCHASE.
Feel free to contact us with any questions!
—
Description
FAQ: Q: How can I accurately align the rangefinder with the crosshairs on my scope? A: There are 3 ways to accomplish this: 1. Simple method Point scope crosshairs at a target at the approximate distance you intend to shoot. Stabilize shooting platform so the scope doesn’t move. Use the windage and elevation knobs on the mount to point the rangefinder reticle at the same aiming point as the scope reticle. Re-verify scope reticle has not moved from the target. Verify rangefinder reticle matches aiming point of scope. For extra accuracy, measure the distance between center of scope occular lens and the center of rangefinder occular lens, and maintain rangefinder point-of-aim parallel to scope crosshairs to prevent point-of-aim divergence over large distances. 2. More accurate method A more accurate method is to have a target at the approximate distance you intend to shoot, where you have a much longer distance behind the target to use as a contrast. Point scope at the edge of the target. Adjust rangefinder so that it detects the point at which aiming point goes off the edge of the target both horizontally and vertically. Fire rangefinder while moving off the edge of the target. The rangefinder should be aligned so that it switches to displaying the much longer distance behind the target just as scope crosshairs move off the edge of the target. Again, for extra accuracy, measure the distance between center of scope occular lens and the center of rangefinder occular lens, and maintain rangefinder point-of-aim parallel to scope crosshairs to prevent point-of-aim divergence over large distances. 3. Most accurate method – requires digital night vision clip-on like a PARD NV007 Third method is to use a clip-on digital night vision scope like a PARD NV007 or the cheaper “DIY” Night Vision scopes priced around $100. Digital night vision shows the infrared spectrum used by the rangefinder, so the laser from the rangefinder becomes visible flashing on the target. This makes windage and elevation adjustment for the rangefinder easy and precise. Again, for extra accuracy, measure the distance between center of scope occular lens and the center of rangefinder occular lens, and maintain rangefinder point-of-aim parallel to scope crosshairs to prevent point-of-aim divergence over large distances. Feel free to contact us with any questions!17 reviews for Sightlok RF-1 Rangefinder Mount – range faster using scope reticle, mounts to picatinny and weaver rails, mil-spec anodized 6061-T6 aluminum
