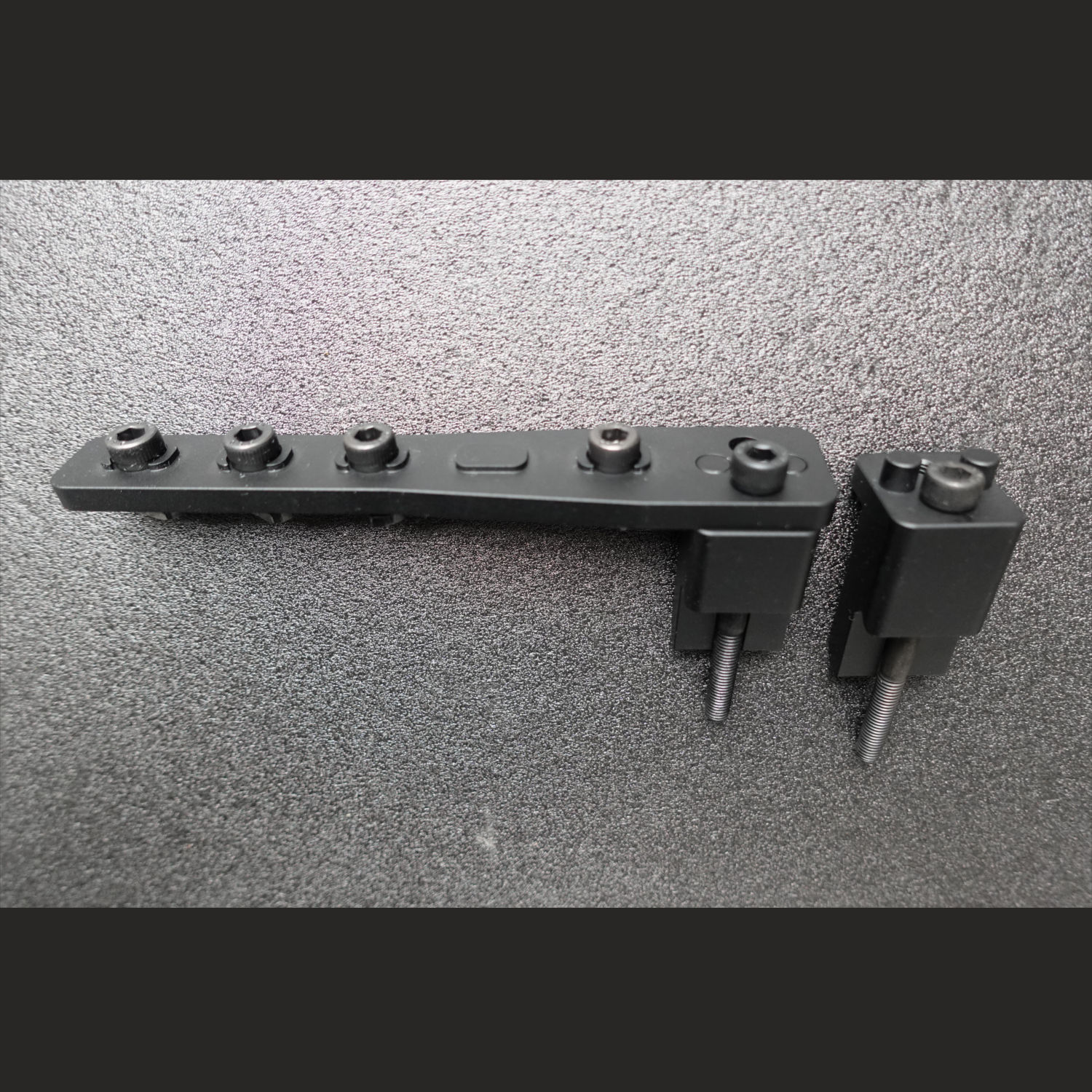

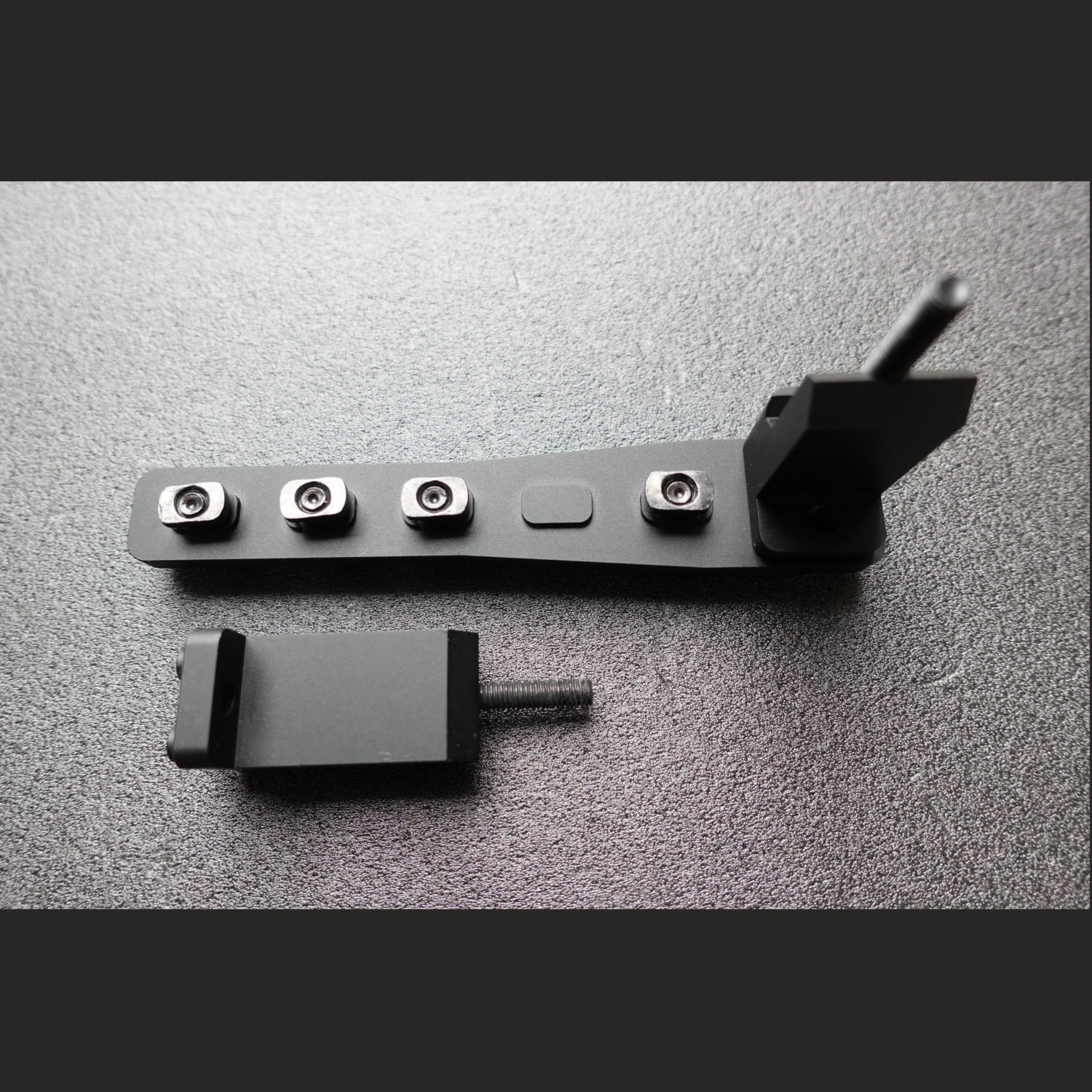

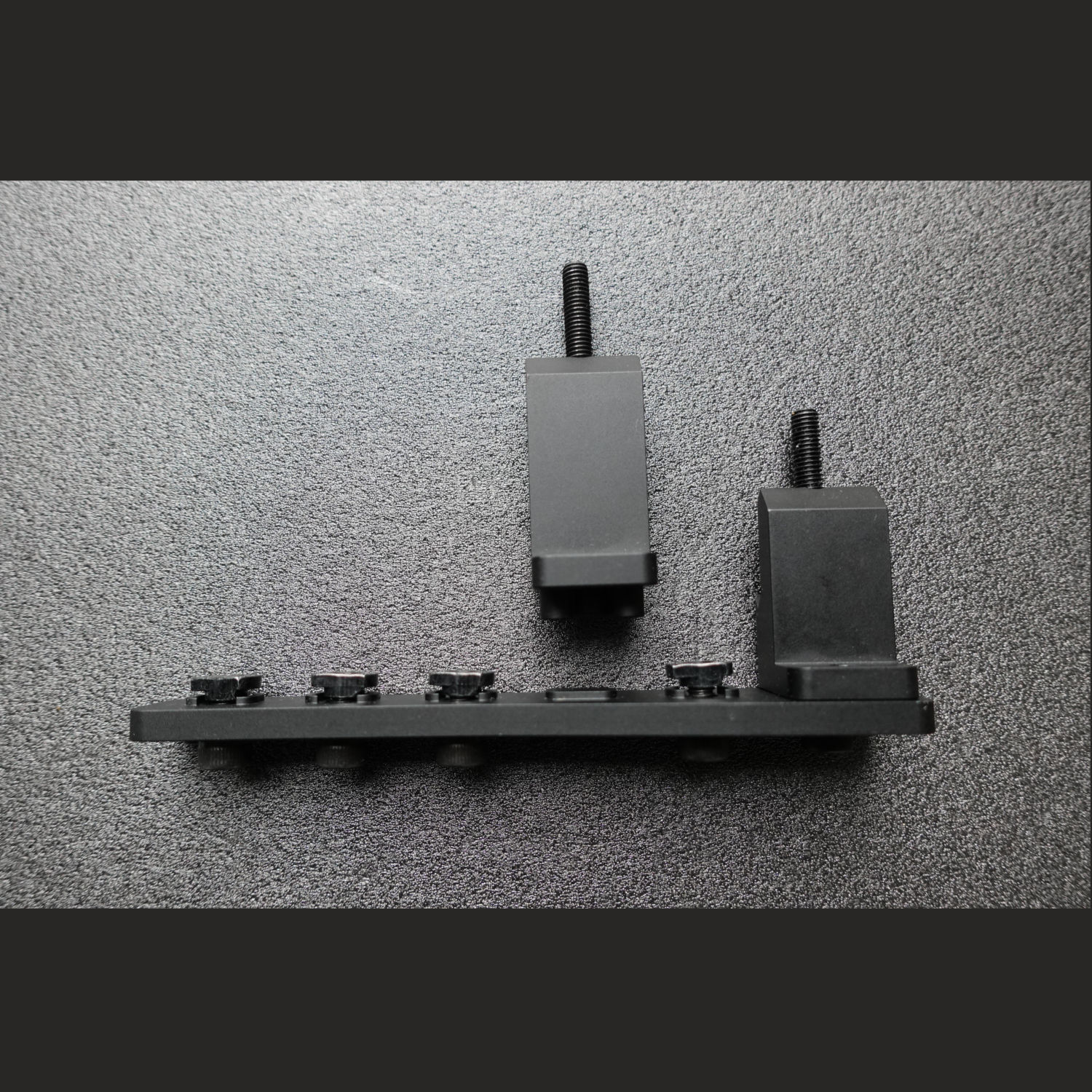

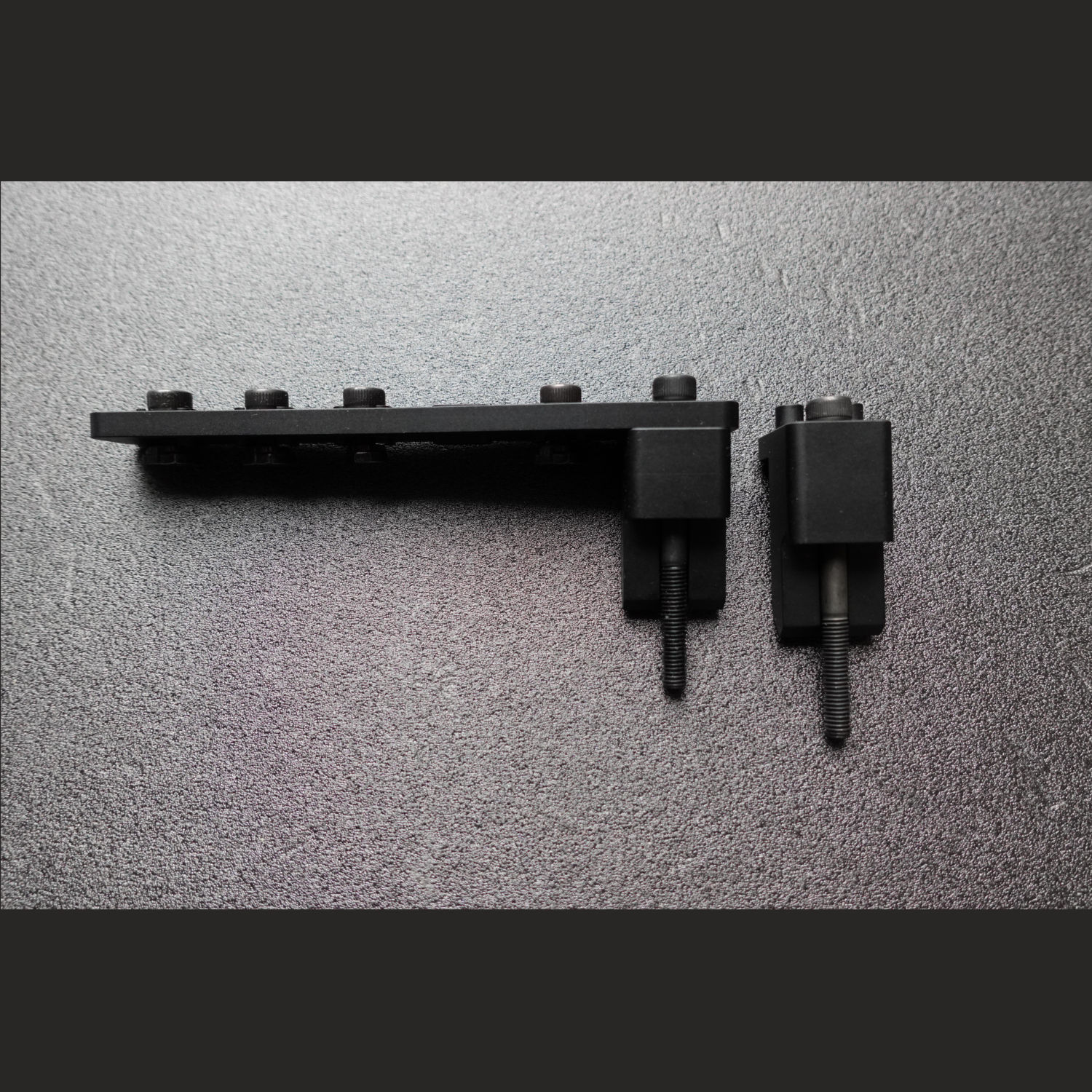

Standard Adjustable Length Picatinny Mount with 2 Offset Options for Sightlok RF-1 Gen 3 Rangefinder Mount (Picatinny to MLOK male)

This is the standard mount most Sightlok RF-1 users will want. It can mount the RF-1 to the right or left of the scope.

It enables the Sightlok RF-1 to mount to any standard Picatinny rail. The height, length, and width (offset from the picatinny rail) are all adjustable.

INCLUDED:
Comes with 2 M5 bolts (1 for each offset), 4 MLOK T-nuts and bolts (M5-10mm)

NOT INCLUDED:
Picatinny Lock (needed to close the picatinny clamp) & M5 Thumbscrew are NOT INCLUDED and must be purchased separately

MATERIALS:
6061-T6 Aluminum with MIL-A-8625 spec Type III anodized hard coat finished in matte black.

MOUNT REQUIREMENTS:
The Sightlok RF-1 mounts securely to any Picatinny (MIL-STD 1913) or Weaver rail.

MOUNTING CLEARANCE:
The mount requires a minimum of 0.275″ (7mm) of clearance between the top of the rail and the bottom of the scope to mount under the scope. It can also be flipped and mounted to the rail under the scope occular if other mount points are obstructed.

SIZING AND ADJUSTMENT RANGE:
Rangefinder height adjustment (choose between 2 MLOK rails)

Length adjustment: 3 1/8″ (8cm)

Horizontal distance from Picatinny/Weaver rail adjustment (2 different-length options are included)
(Having variable options for horizontal distance from the Picatinny/Weaver rail ensures that the rangefinder laser beam can clear windage/brightness/focus knobs/focus rings on the scope).

Weight:
1.7 to 1.8 ounces (50-54 grams), excluding hardware, depending on offset chosen

LIFETIME WARRANTY:
SIGHTLOK warrants that the Sightlok RF-1 mount you purchase was originally manufactured free of defects in material, workmanship, and mechanical function. For the lifetime of the original purchaser, SIGHTLOK agrees to correct any defect in the mount for the original purchaser by repair, adjustment, or replacement, at SIGHTLOK’s option, with the same or comparable quality components (or by replacing the mount at SIGHTLOK’s option); provided however that a Return Merchandise Authorization (RMA) is first obtained by contacting SIGHTLOK Customer Service.
