Mount your rangefinder to your weapon

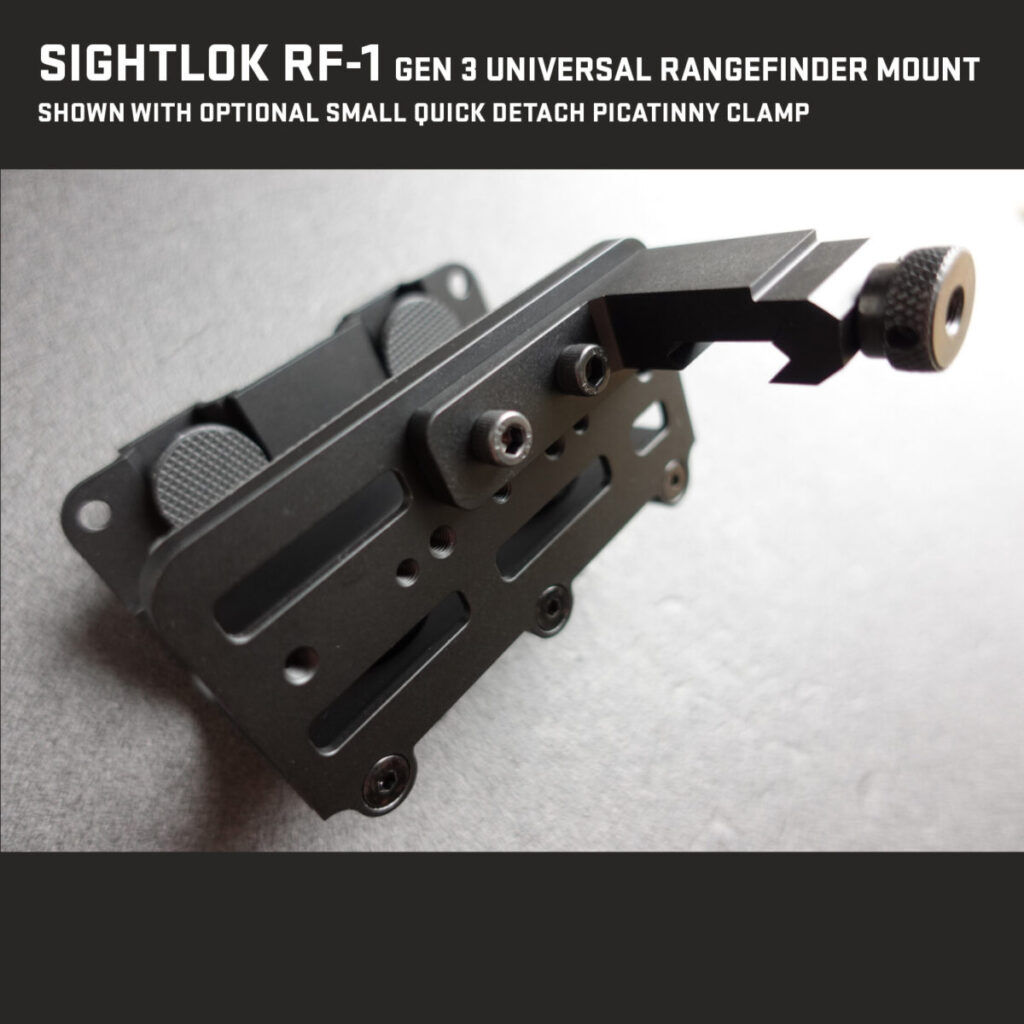

The Sightlok RF-1 is a Picatinny / Weaver rail mount that turns the handheld rangefinder you already own into a weapon-mounted laser rangefinder.

See the Sightlok RF-1 $199.95  ·  ★ 4.88 / 5 · 17 reviews
1 / 3

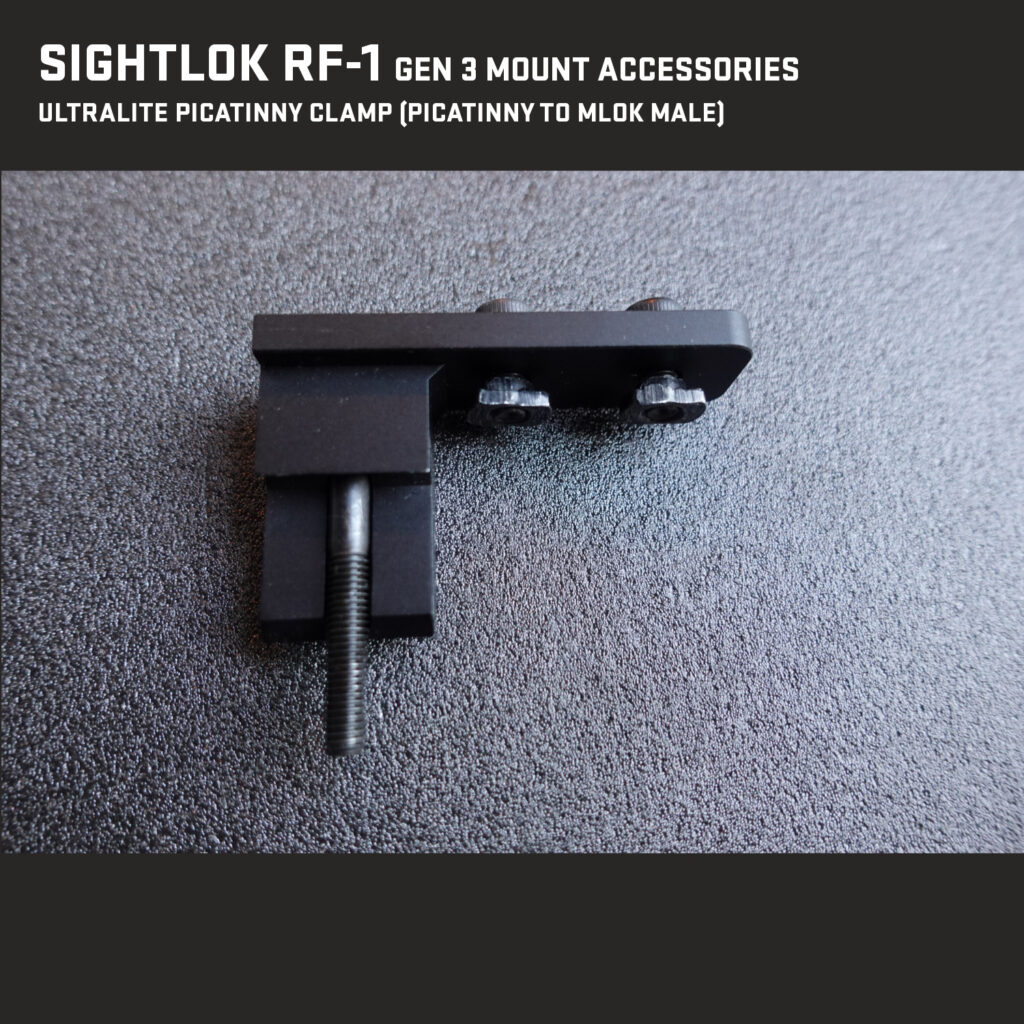

Ultralite

$39.95

For those desiring the lightest solution with less adjustability in length and width (offset from the picatinny rail), there is the Ultralite Picatinny mount option. It can mount the RF-1 to the right or left of the scope, although it is better suited to mounting the rangefinder on the left of the scope.

It enables the Sightlok RF-1 to mount to any standard Picatinny rail. The height and length are adjustable.

INCLUDED:
Comes with 1 M5 bolt and 2 MLOK T-nuts and bolts (M5-10mm)

NOT INCLUDED:
Picatinny Lock (needed to close the picatinny clamp) & M5 Thumbscrew are NOT INCLUDED and must be purchased separately

MATERIALS:
6061-T6 Aluminum with MIL-A-8625 spec Type III anodized hard coat finished in matte black.

MOUNT REQUIREMENTS:
The Sightlok RF-1 mounts securely to any Picatinny (MIL-STD 1913) or Weaver rail.

MOUNTING CLEARANCE:
The mount requires a minimum of 0.275″ (7mm) of clearance between the top of the rail and the bottom of the scope to mount under the scope. It can also be flipped and mounted to the rail under the scope occular if other mount points are obstructed.

SIZING AND ADJUSTMENT RANGE:
Rangefinder height adjustment (choose between 2 MLOK rails)

Length adjustment: 3 1/3″ (8.4cm)

Weight:
1 ounce (28 grams), excluding hardware, depending on offset chosen

LIFETIME WARRANTY:
SIGHTLOK warrants that the Sightlok RF-1 mount you purchase was originally manufactured free of defects in material, workmanship, and mechanical function. For the lifetime of the original purchaser, SIGHTLOK agrees to correct any defect in the mount for the original purchaser by repair, adjustment, or replacement, at SIGHTLOK’s option, with the same or comparable quality components (or by replacing the mount at SIGHTLOK’s option); provided however that a Return Merchandise Authorization (RMA) is first obtained by contacting SIGHTLOK Customer Service.

WARNING:

You are attempting to purchase a Sightlok RF-1 mount with no mounting accessories. If you do so, you will only be able to mount it using some non-standard route like bolting it to your MLOK handguard, buying a clamp from a 3rd party, or using it with a tripod. Are you sure you want to do this?
